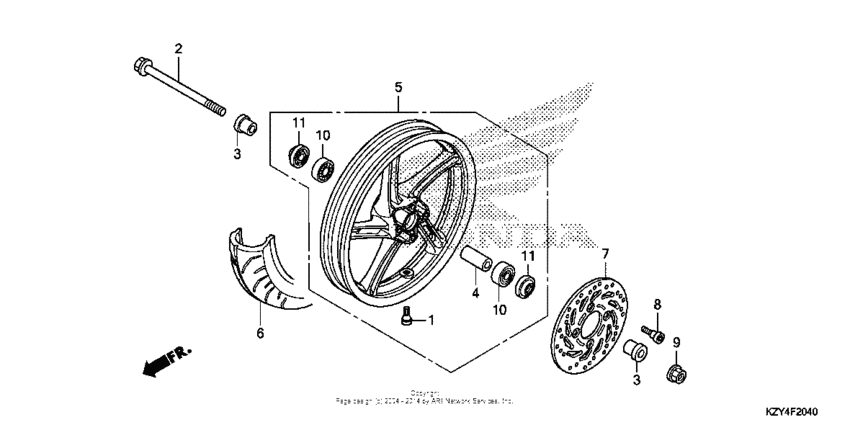

Front wheel Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42753-GM9-743 Valve, rim |
42753-GM9-743 |
from US $9.32 |
||
|
1
|
1
42753-KWF-901 Valve, rim |
42753-KWF-901 |
from US $0.48 |
||
| replacement | |||||
|
1
|
1
42753-K38-901 Valve, Rim |
42753-K38-901 |
US $0.77 |
||
|
2
|
2
44301-KWW-640 Axle, fr. wheel |
44301-KWW-640 |
from US $14.55 |
||
|
3
|
3
44311-KWN-700 Collar,fr wheel s |
44311-KWN-700 |
from US $3.89 |
||
|
4
|
4
44620-KPH-950 Collar,fr axle di |
44620-KPH-950 |
from US $3.79 |
||
|
5
|
5
44650-KZY-305ZA Wheel sub *nh303m* |
44650-KZY-305ZA |
US $254.56 |
||
|
6
|
6
44711-KWN-711 Tire, fr. |
44711-KWN-711 |
US $73.51 |
||
|
6
|
6
44711-KWN-902 Tire,fr(irc) |
44711-KWN-902 |
US $62.95 |
||
| replacement | |||||
|
6
|
6
44711-KWN-903 Tire, Fr. |
44711-KWN-903 |
US $62.95 |
||
|
7
|
7
45351-KVG-901 Disk,fr brake |
45351-KVG-901 |
from US $43.76 |
||
|
7
|
7
45351-KVG-902 Disk,fr brake |
45351-KVG-902 |
from US $50.22 |
||
|
7
|
7
45351-KVG-951 Disk, fr. brake |
45351-KVG-951 |
from US $35.22 |
||
|
8
|
8
90105-KGH-900 Bolt,brk disk 8x2 |
90105-KGH-900 |
from US $2.81 |
||
|
9
|
9
90306-KWN-701 Nut,u,12mm |
90306-KWN-701 |
from US $5.18 |
||
|
10
|
10
91052-KVB-S51 New Genuine Part |
91052-KVB-S51 |
from US $9.62 |
||
|
10
|
10
91052-KVB-901 Brg,ball radial 6 |
91052-KVB-901 |
from US $10.95 |
||
|
10
|
10
91052-KVB-902 Brg,ball radial 6 |
91052-KVB-902 |
from US $10.71 |
||
|
11
|
11
91251-KPH-901 Dust seal,21x37x7 |
91251-KPH-901 |
from US $0.54 |
||
