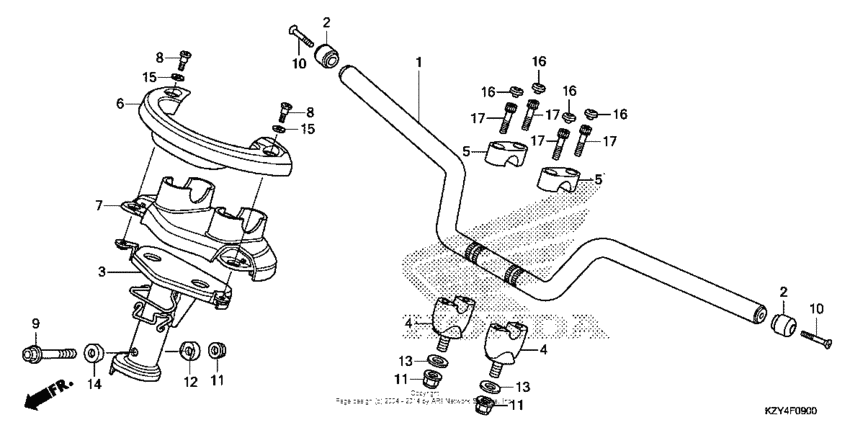

Handlebar + handle cover Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53100-KZY-305 Handlebar |
53100-KZY-305 |
US $64.26 |
||
|
2
|
2
53102-KWN-710 Weight a, handle |
53102-KWN-710 |
from US $10.05 |
||
|
3
|
3
53110-KWN-710 Post, handle |
53110-KWN-710 |
from US $89.76 |
||
|
4
|
4
53130-KWN-900 Holder,hndl under |
53130-KWN-900 |
from US $10.51 |
||
|
5
|
5
53131-KR8-000 Holder, handlebar |
53131-KR8-000 |
from US $17.42 |
||
|
6
|
6
53205-KWN-900 Cover,handle fr |
53205-KWN-900 |
from US $10.05 |
||
|
7
|
7
53206-KWN-900 Cover,handle rr |
53206-KWN-900 |
from US $9.95 |
||
|
8
|
8
90107-MM5-000 Screw, pan (6x14) |
90107-MM5-000 |
from US $1.67 |
||
|
9
|
9
90120-HC4-000 Bolt, flange (10x50) |
90120-HC4-000 |
from US $4 |
||
|
10
|
10
90191-KWB-600 Screw,oval 6x40 |
90191-KWB-600 |
from US $1.09 |
||
|
11
|
11
90304-KGH-901 Nut,u,10mm |
90304-KGH-901 |
from US $2.74 |
||
|
12
|
12
90501-KPH-880 Collar a,hndl set |
90501-KPH-880 |
from US $1.80 |
||
|
13
|
13
90502-KWN-670 Washer,10mm |
90502-KWN-670 |
from US $0.97 |
||
|
14
|
14
90505-KPH-880 Collar b,hndl set |
90505-KPH-880 |
from US $1.56 |
||
|
15
|
15
90507-921-000 Washer, nylon, 8mm |
90507-921-000 |
from US $0.59 |
||
|
16
|
16
91455-KEA-000 Cap (8mm) |
91455-KEA-000 |
from US $2.07 |
||
|
17
|
17
96600-0803210 Bolt, socket (8x32) |
96600-0803210 |
from US $0.81 |
