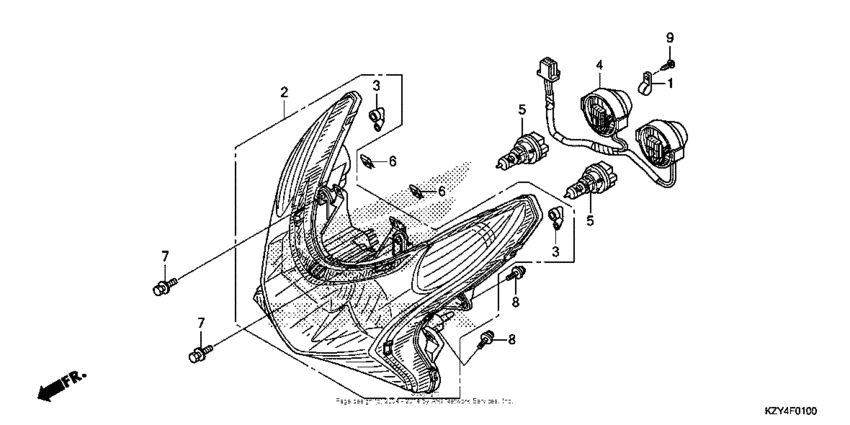

Headlight Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32920-MN5-003 Clamp, wire |
32920-MN5-003 |
from US $2.22 |
||
|
2
|
2
33110-KWN-305 Set,head light unit |
33110-KWN-305 |
US $246.84 |
||
|
3
|
3
33113-KVB-T01 Pipe cp |
33113-KVB-T01 |
from US $1.75 |
||
|
4
|
4
33150-KWN-671 Socket assy,head |
33150-KWN-671 |
US $27.56 |
||
|
5
|
5
34901-GFM-971
Bulb,head light
|
34901-GFM-971 |
— | ||
| replacement | |||||
|
5
|
5
34901-GGE-901 Bulb (hs5) |
34901-GGE-901 |
from US $28.29 |
||
|
5
|
5
34901-GGE-901 Bulb (hs5) |
34901-GGE-901 |
from US $28.29 |
||
|
6
|
6
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
7
|
7
93404-0601200 Bolt-washer, 6x12 |
93404-0601200 |
from US $0.52 |
||
|
8
|
8
93894-050-140-0 Screw-washer, 5x14 |
93894-050-140-0 |
from US $0.44 |
||
|
9
|
9
93911-24310 Screw,tapping,4x1 |
93911-24310 |
from US $0.37 |
||
