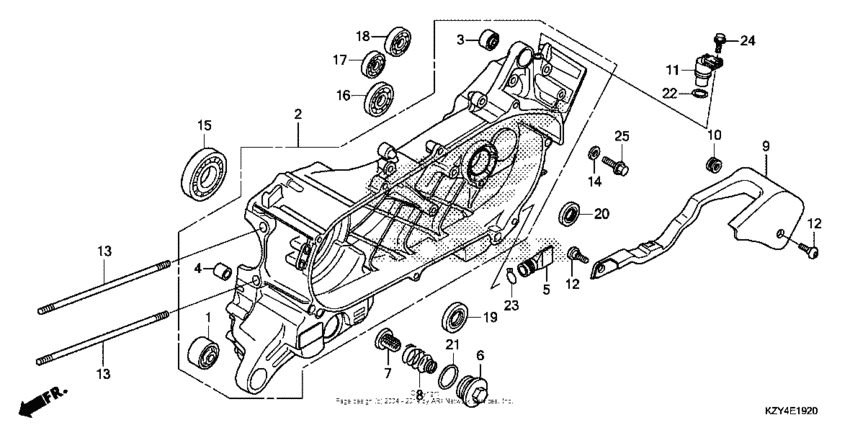

Left crankcase Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11103-KVB-901 Rub.bush,eng.hang |
11103-KVB-901 |
from US $4.79 |
||
|
1
|
1
11103-KVB-930 Bush, eng hgr rub |
11103-KVB-930 |
from US $2.96 |
||
| replacement | |||||
|
1
|
1
11103-KVB-901 Rub.bush,eng.hang |
11103-KVB-901 |
from US $4.79 |
||
|
2
|
2
11200-KZY-700 Crankcase, l. |
11200-KZY-700 |
from US $163.17 |
||
| replacement | |||||
|
2
|
2
11200-KZY-702 CRANKCASE, L. |
11200-KZY-702 |
from US $209.15 |
||
|
3
|
3
11203-KVB-901 Under.rubber.bush |
11203-KVB-901 |
from US $5.48 |
||
|
4
|
4
11205-GBC-300 Bush,m stand |
11205-GBC-300 |
from US $1.56 |
||
|
5
|
5
11343-KVG-900 Tube,drain |
11343-KVG-900 |
from US $1.87 |
||
|
6
|
6
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $13.04 |
||
|
7
|
7
15421-KPL-900 Screen, oil filter |
15421-KPL-900 |
from US $2.40 |
||
|
7
|
7
15421-107-000 Screen, oil filter |
15421-107-000 |
from US $7.40 |
||
|
8
|
8
15426-KVB-900 Spg,oil filter sc |
15426-KVB-900 |
from US $2.18 |
||
|
9
|
9
32112-KZR-600 Protr, speed sensor |
32112-KZR-600 |
from US $5.61 |
||
|
10
|
10
32113-KWN-900 Grommet,sp sensor |
32113-KWN-900 |
from US $0.80 |
||
|
11
|
11
37700-HP5-601 Sensor assy., speed |
37700-HP5-601 |
from US $40.15 |
||
| replacement | |||||
|
11
|
11
37700-KZR-601 Sensor assy., speed |
37700-KZR-601 |
from US $54.40 |
||
|
11
|
11
37700-KZR-601 Sensor assy., speed |
37700-KZR-601 |
from US $54.40 |
||
|
12
|
12
90001-KWR-000 Bolt,socket 6x18 |
90001-KWR-000 |
from US $0.85 |
||
|
13
|
13
90032-KWN-900 Bolt,b stud 8x206 |
90032-KWN-900 |
from US $3.26 |
||
|
14
|
14
90495-MN5-000 Washer (8mm) |
90495-MN5-000 |
from US $1.92 |
||
|
15
|
15
91002-KWN-901 Brg,ball radial 6 |
91002-KWN-901 |
from US $18.63 |
||
|
15
|
15
91002-KZR-601 Bearing (6207) |
91002-KZR-601 |
from US $17.56 |
||
|
16
|
16
91003-KZR-601 Bearing (6204) |
91003-KZR-601 |
from US $9.93 |
||
|
16
|
16
91003-KZR-602 Bearing (6204) |
91003-KZR-602 |
from US $12.26 |
||
|
17
|
17
91005-KZR-601 Bearing (6301) |
91005-KZR-601 |
from US $9.28 |
||
|
17
|
17
91005-KZR-602 Bearing (6301) |
91005-KZR-602 |
from US $9.25 |
||
|
18
|
18
91008-KZR-601 Bearing (6302) |
91008-KZR-601 |
from US $9.40 |
||
|
18
|
18
91008-KZR-602 Bearing (6302) |
91008-KZR-602 |
from US $9.42 |
||
|
19
|
19
91202-KWN-901 Oil seal,26x45x6 |
91202-KWN-901 |
from US $1.51 |
||
|
20
|
20
91203-KWN-901 Oil seal,20x32x6 |
91203-KWN-901 |
from US $1.29 |
||
|
21
|
21
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
22
|
22
91356-MA6-005 O-ring (14.8x2.4) |
91356-MA6-005 |
from US $2.74 |
||
|
23
|
23
9500280000 Clip, tube (c12) |
9500280000 |
from US $0.44 |
||
|
24
|
24
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
25
|
25
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
