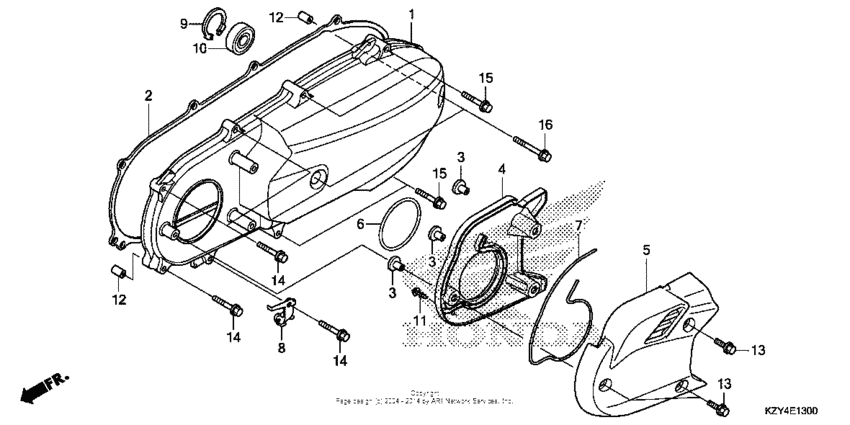

Left side cover Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-KWN-780 Cover, l. side |
11341-KWN-780 |
from US $156.40 |
||
|
2
|
2
11395-KZR-600 Gasket, l. cover |
11395-KZR-600 |
from US $9.79 |
||
|
3
|
3
19416-KEY-900 Collar |
19416-KEY-900 |
from US $1.11 |
||
|
4
|
4
19641-KWN-710 Duct, l. cover |
19641-KWN-710 |
from US $6.26 |
||
|
5
|
5
19642-KWN-710 Cap, l. cover |
19642-KWN-710 |
from US $9.45 |
||
|
6
|
6
19645-KWN-900 Seal,belt cover d |
19645-KWN-900 |
from US $2.15 |
||
|
7
|
7
19649-KWN-710 Seal, l. cover duct |
19649-KWN-710 |
from US $2.75 |
||
|
8
|
8
43455-KWN-900 Clamper b,rr brk |
43455-KWN-900 |
from US $0.56 |
||
|
9
|
9
90652-KVB-900 Circlip,in.32 |
90652-KVB-900 |
from US $0.82 |
||
|
10
|
10
91005-KVB-900 Brg,comp |
91005-KVB-900 |
from US $10.59 |
||
|
11
|
11
93903-24480 ScrewTAPPING, 4X16 |
93903-24480 |
from US $0.37 |
||
|
12
|
12
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
13
|
13
96001-0601807 Bolt, flange (6x18) |
96001-0601807 |
from US $0.59 |
||
|
14
|
14
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
15
|
15
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
16
|
16
96001-060-650-0 BoltFLANGE, 6X65 |
96001-060-650-0 |
from US $0.89 |
