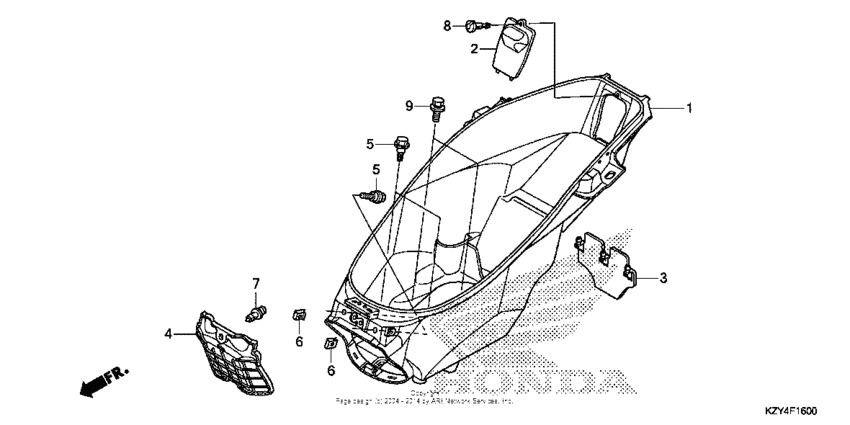

Luggage box Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81250-KWN-711 Box, luggage |
81250-KWN-711 |
from US $178.16 |
||
|
2
|
2
81253-KWN-900 Lid,luggage box |
81253-KWN-900 |
from US $1.79 |
||
|
3
|
3
81265-KWN-900 Guard,splash rr |
81265-KWN-900 |
from US $4.49 |
||
|
4
|
4
81290-KWN-900 Cover,battery |
81290-KWN-900 |
from US $3.69 |
||
|
5
|
5
90111-187-000 BoltFLANGE, 6MM |
90111-187-000 |
from US $4 |
||
|
6
|
6
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
7
|
7
90653-HW3-671 Rivet, push (d8) |
90653-HW3-671 |
from US $2.24 |
||
|
8
|
8
90683-GAZ-003 Clip, trim |
90683-GAZ-003 |
from US $1.22 |
||
|
9
|
9
93404-0601200 Bolt-washer, 6x12 |
93404-0601200 |
from US $0.52 |
