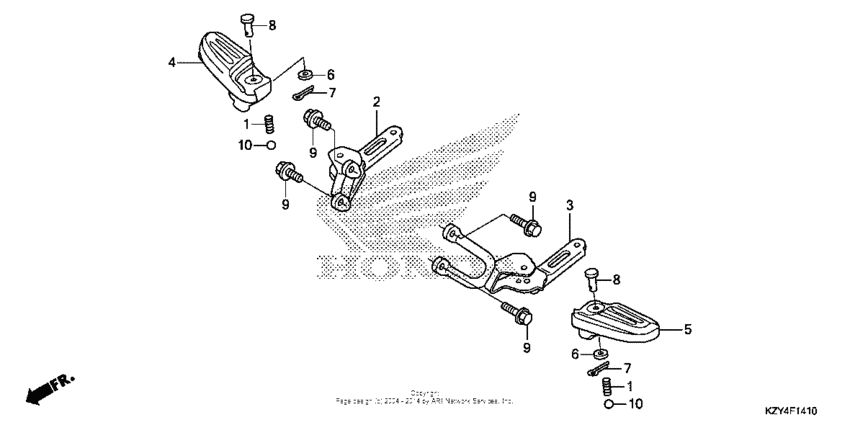

Pillion step Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28333-300-000 Spring |
28333-300-000 |
from US $2.14 |
||
|
2
|
2
50715-KWN-710 Bracket, r |
50715-KWN-710 |
from US $23.80 |
||
|
3
|
3
50716-KWN-710 Bracket, l |
50716-KWN-710 |
from US $23.80 |
||
|
4
|
4
50720-KWN-305 Arm,r pillion ste |
50720-KWN-305 |
US $11.41 |
||
|
5
|
5
50730-KWN-305 Arm,l pillion ste |
50730-KWN-305 |
US $11.41 |
||
|
6
|
6
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
7
|
7
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
8
|
8
9501581000 Pin a, pillion step |
9501581000 |
from US $1.48 |
||
|
9
|
9
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
||
|
10
|
10
96211-08000 Ball |
96211-08000 |
from US $0.22 |
