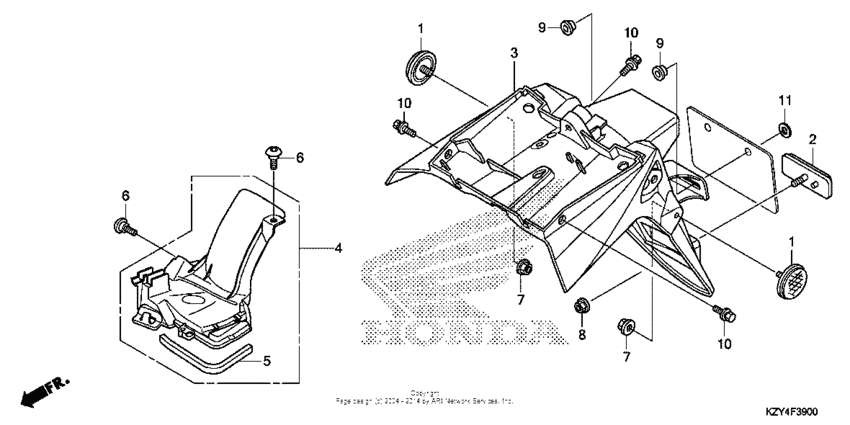

Rear fender Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-HB9-641 Reflector, rr. |
33741-HB9-641 |
from US $16.43 |
||
|
2
|
2
33741-KWN-901 Reflex,reflector |
33741-KWN-901 |
from US $11.92 |
||
|
3
|
3
80105-KWN-670 Fender,rr |
80105-KWN-670 |
US $163.22 |
||
|
4
|
4
80106-KZR-600 Fender, rr. (inner) |
80106-KZR-600 |
from US $19.57 |
||
|
5
|
5
80108-KZR-600 Seal, rr. fender |
80108-KZR-600 |
from US $2.44 |
||
|
6
|
6
90001-KWR-000 Bolt,socket 6x18 |
90001-KWR-000 |
from US $0.85 |
||
|
7
|
7
90301-KGH-901 Nut,u,6mm |
90301-KGH-901 |
from US $1.92 |
||
|
8
|
8
90301-KWN-901 Nut,u,5mm |
90301-KWN-901 |
from US $0.88 |
||
|
9
|
9
90563-KC5-000 Washer |
90563-KC5-000 |
from US $2 |
||
|
10
|
10
93404-0601200 Bolt-washer, 6x12 |
93404-0601200 |
from US $0.52 |
||
|
11
|
11
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
