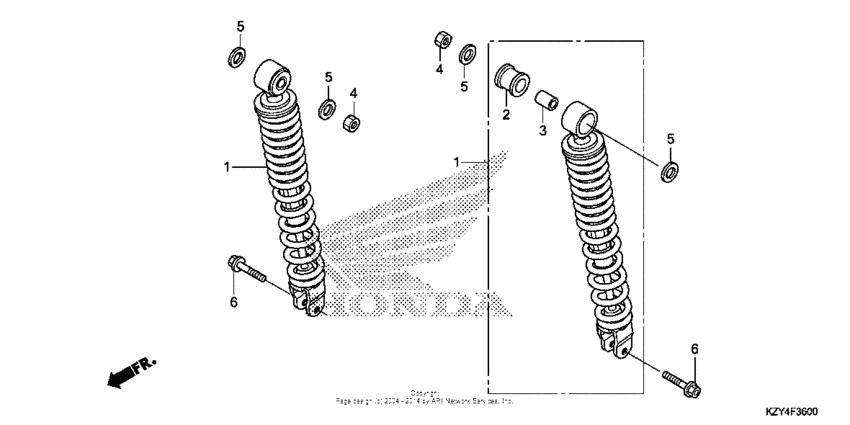

Rear shock absorber Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-KZY-305 Cushion assy., rr. |
52400-KZY-305 |
US $78.46 |
||
|
2
|
2
52485-KVY-901 Bush,rubber |
52485-KVY-901 |
from US $1.11 |
||
|
3
|
3
52486-GA7-003 Collar, rubber bush |
52486-GA7-003 |
from US $2.57 |
||
|
4
|
4
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
5
|
5
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
6
|
6
95801-0803200 Bolt, flange (8x32) |
95801-0803200 |
from US $0.74 |
