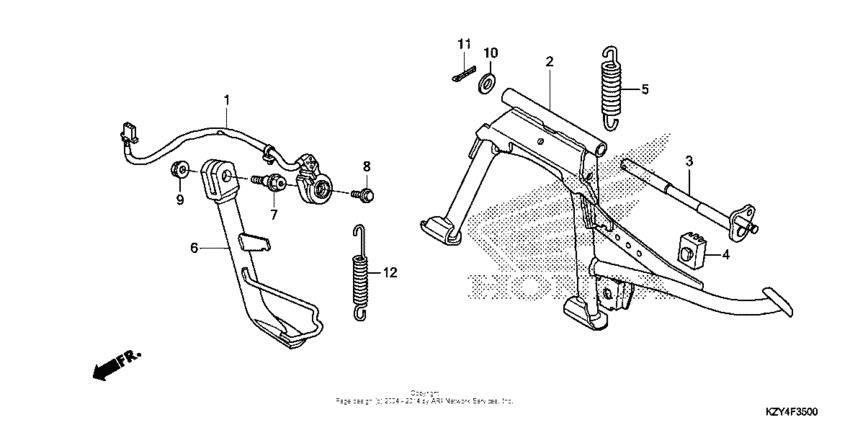

Stand Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35700-KWN-781 Switch, side stand |
35700-KWN-781 |
from US $43.79 |
||
|
2
|
2
50500-KZY-305 Stand, main |
50500-KZY-305 |
US $38.49 |
||
|
3
|
3
50503-KWN-900 Shaft,main stand |
50503-KWN-900 |
from US $4.91 |
||
|
4
|
4
50505-GR1-710 Rubber |
50505-GR1-710 |
from US $3.27 |
||
|
5
|
5
50520-KVB-900 Spg,main stand |
50520-KVB-900 |
from US $2 |
||
|
6
|
6
50530-KZY-305 Bar, side stand |
50530-KZY-305 |
US $17.22 |
||
|
7
|
7
90108-KZL-860 Bolt |
90108-KZL-860 |
from US $3.11 |
||
|
8
|
8
90147-KVY-900 Bolt,sw setting |
90147-KVY-900 |
from US $2.04 |
||
|
9
|
9
90203-KVB-900 Nut,side stand |
90203-KVB-900 |
from US $2.38 |
||
|
10
|
10
94101-10800 WasherPLAIN, 10MM |
94101-10800 |
from US $0.52 |
||
|
11
|
11
9420130280 Pin, split, 3.0x28 |
9420130280 |
from US $0.44 |
||
|
11
|
11
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
11
|
11
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
11
|
11
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
12
|
12
9501472102 Spring a, side stand |
9501472102 |
from US $1.08 |
||
