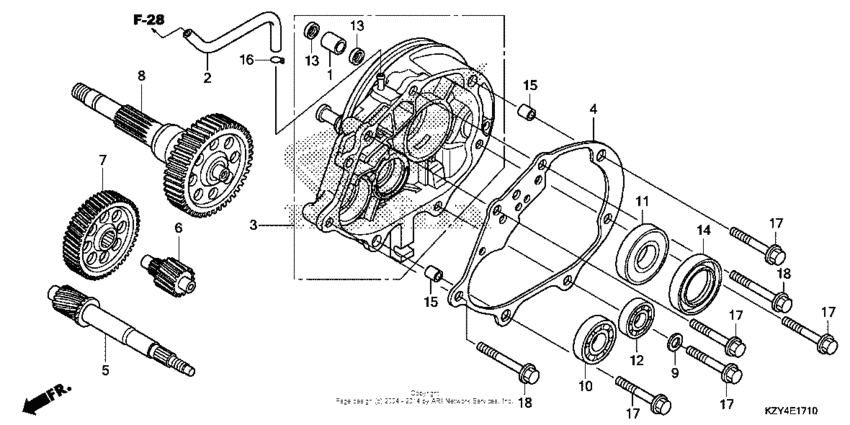

Transmission Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11204-KGF-900 Sleeve, rr. |
11204-KGF-900 |
from US $9.92 |
||
|
2
|
2
11211-KZR-600 Tube, trans bthr |
11211-KZR-600 |
from US $2.96 |
||
|
3
|
3
21200-KWN-710 Case, transmission |
21200-KWN-710 |
from US $73.44 |
||
|
4
|
4
21395-KZR-600 Gasket, trans case |
21395-KZR-600 |
from US $6.39 |
||
|
5
|
5
23411-KZR-600 Shaft, drive (17t) |
23411-KZR-600 |
from US $19.65 |
||
| replacement | |||||
|
5
|
5
23411-KZR-601 SHAFT, DRIVE (17T) |
23411-KZR-601 |
from US $23.24 |
||
|
6
|
6
23421-KZR-600 Countershaft (13t) |
23421-KZR-600 |
from US $15.57 |
||
|
7
|
7
23422-KWN-900 Gear,counter |
23422-KWN-900 |
from US $22.13 |
||
|
8
|
8
23430-KZR-600 Gear, final (44t) |
23430-KZR-600 |
from US $51.20 |
||
|
9
|
9
90495-MN5-000 Washer (8mm) |
90495-MN5-000 |
from US $1.92 |
||
|
10
|
10
91004-KZR-601 Bearing (6202) |
91004-KZR-601 |
from US $9.18 |
||
|
10
|
10
91004-KZR-602 Bearing (6202) |
91004-KZR-602 |
from US $9.18 |
||
|
11
|
11
91006-KAB-004 Bearing (6205-2nsg) |
91006-KAB-004 |
from US $14.96 |
||
|
11
|
11
91009-KWN-901 Brg,ball radial 6 |
91009-KWN-901 |
from US $9.59 |
||
|
12
|
12
91006-KZR-601 Bearing (6201) |
91006-KZR-601 |
from US $9.18 |
||
|
12
|
12
91006-KZR-602 Bearing (6201) |
91006-KZR-602 |
from US $9.18 |
||
|
13
|
13
91201-434-003 Oil seal, 14x20x3 |
91201-434-003 |
from US $3.77 |
||
|
14
|
14
91204-KWN-900 Oil seal,34x52x7 |
91204-KWN-900 |
from US $2.21 |
||
|
15
|
15
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.04 |
||
|
16
|
16
95002-50000 ClipTUBE(C9) |
95002-50000 |
from US $0.37 |
||
|
17
|
17
95701-080-450-0 BoltFLANGE, 8X45 |
95701-080-450-0 |
from US $0.81 |
||
|
18
|
18
95701-0805500 Bolt, flange, 8x55 |
95701-0805500 |
from US $0.86 |
||
