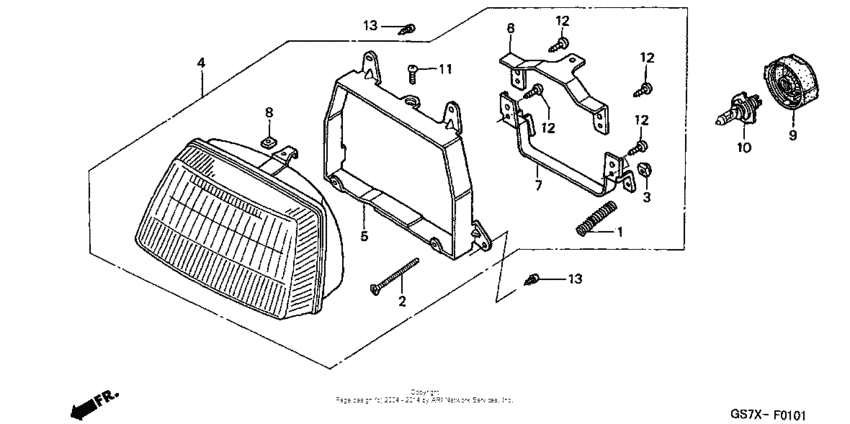

Headlight (2) Diagram Honda SA50
- Year
- 2001
- Model code
- SA50 A
- Sales region
- USA
- Frame
- 3H1AF160*1D200001 -
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33107-GE8-671 Spg.,beam adj. |
33107-GE8-671 |
US $4 |
||
|
2
|
2
33114-GS7-670 Screw,beam adjust |
33114-GS7-670 |
US $4.42 |
||
|
3
|
3
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
4
|
4
33120-GS7-A81
Headlight unit
|
33120-GS7-A81 |
— | ||
|
5
|
5
33121-GS7-670
Ring,headlight
|
33121-GS7-670 |
— | ||
|
6
|
6
33122-GS7-A81
Stay a
|
33122-GS7-A81 |
— | ||
|
7
|
7
33123-GS7-A81
Stay b
|
33123-GS7-A81 |
— | ||
|
8
|
8
33128-GE8-671 Nut, unit holder |
33128-GE8-671 |
from US $2.29 |
||
|
9
|
9
33180-MR7-003 Cover, rubber |
33180-MR7-003 |
from US $10.95 |
||
|
10
|
10
34901-MJ6-732 Bulb (12v 35/35w) |
34901-MJ6-732 |
from US $35.77 |
||
|
11
|
11
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
12
|
12
93901-34320 ScrewTAPPING, 4X12 |
93901-34320 |
from US $0.37 |
||
|
13
|
13
93903-34310 ScrewTAPPING, 4X12 |
93903-34310 |
from US $0.38 |
