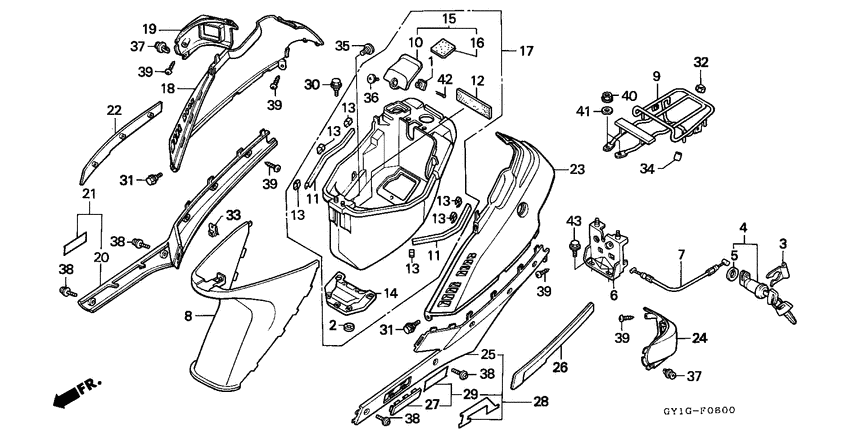

Body cover Diagram Honda SA50
- Year
- 1993
- Model code
- SA50P
- Sales region
- Germany
- Frame
- AF291101489 - AF291106826
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61304-958-003 Nut, special, 6x7 |
61304-958-003 |
from US $3.55 |
||
|
2
|
2
64436-GY1-900
Clip,guide
|
64436-GY1-900 |
— | ||
|
3
|
3
75581-673-000 SpringLOCK KEY SETTING |
75581-673-000 |
from US $2.60 |
||
|
4
|
4
77230-KM1-000
Key assy,seat loc
|
77230-KM1-000 |
— | ||
|
5
|
5
77231-KM1-000 Collar,seat lock |
77231-KM1-000 |
from US $3.25 |
||
|
6
|
6
77235-GY1-900 Catch comp.,seat |
77235-GY1-900 |
US $33.09 |
||
|
7
|
7
77240-GY1-900
Cable,seat lock
|
77240-GY1-900 |
— | ||
|
8
|
8
80150-GS7-000ZC
Cover *nh1*
|
80150-GS7-000ZC |
— | ||
|
9
|
9
81200-GY2-900
Carrier,luggage
|
81200-GY2-900 |
— | ||
|
10
|
10
81251-GY1-900
Cover,plug mainte
|
81251-GY1-900 |
— | ||
|
11
|
11
81252-GS7-000
Seal,luggfage box
|
81252-GS7-000 |
— | ||
|
12
|
12
81252-GW2-000 Cushion,luggage b |
81252-GW2-000 |
US $2.55 |
||
|
13
|
13
81253-GS7-000
Clip,seal rubber
|
81253-GS7-000 |
— | ||
|
14
|
14
81255-GY2-901
Insulator,heat
|
81255-GY2-901 |
— | ||
|
15
|
15
81256-GY1-610
Cover comp.,plug
|
81256-GY1-610 |
— | ||
|
16
|
16
81257-GY1-610
Insulator
|
81257-GY1-610 |
— | ||
|
17
|
17
81260-GY1-610
Box assy,luggage
|
81260-GY1-610 |
— | ||
|
18
|
18
83450-GY1-650ZA
Set,r body*type1*
|
83450-GY1-650ZA |
— | ||
|
18
|
18
83450-GY1-650ZB
Set,r body*type2*
|
83450-GY1-650ZB |
— | ||
|
18
|
18
83450-GY1-700ZA
Set,r body*type3*
|
83450-GY1-700ZA |
— | ||
|
18
|
18
83450-GY1-700ZB
Set,r body*type4*
|
83450-GY1-700ZB |
— | ||
|
19
|
19
83502-GY1-610ZC
Cover r t*nh154r*
|
83502-GY1-610ZC |
— | ||
|
19
|
19
83502-GY1-610ZD
Cover r ta*pb136*
|
83502-GY1-610ZD |
— | ||
|
19
|
19
83502-GY1-610ZE
Cover r tai*r134*
|
83502-GY1-610ZE |
— | ||
|
20
|
20
83520-GY1-900ZF
Cover,r s*nh154r*
|
83520-GY1-900ZF |
— | ||
|
21
|
21
83460-GY1-690ZA
Set,r side*type1*
|
83460-GY1-690ZA |
— | ||
|
21
|
21
83460-GY1-690ZB
Set,r side*type2*
|
83460-GY1-690ZB |
— | ||
|
22
|
22
83521-GY1-790ZA
Molding,r.si*nh1*
|
83521-GY1-790ZA |
— | ||
|
23
|
23
83550-GY1-650ZA
Set,l body*type1*
|
83550-GY1-650ZA |
— | ||
|
23
|
23
83550-GY1-650ZB
Set,l body*type2*
|
83550-GY1-650ZB |
— | ||
|
23
|
23
83550-GY1-700ZA
Set,l body*type3*
|
83550-GY1-700ZA |
— | ||
|
23
|
23
83550-GY1-700ZB
Set,l body*type4*
|
83550-GY1-700ZB |
— | ||
|
24
|
24
83602-GY1-610ZC
Cover l t*nh154r*
|
83602-GY1-610ZC |
— | ||
|
24
|
24
83602-GY1-610ZD
Cover l ta*pb136*
|
83602-GY1-610ZD |
— | ||
|
24
|
24
83602-GY1-610ZE
Cover l tai*r134*
|
83602-GY1-610ZE |
— | ||
|
25
|
25
83620-GY2-900ZH
Cover,l s*nh154r*
|
83620-GY2-900ZH |
— | ||
|
26
|
26
83621-GY1-790ZA
Molding,l.si*nh1*
|
83621-GY1-790ZA |
— | ||
|
27
|
27
83630-GS7-000ZS
Lid side *nh154r*
|
83630-GS7-000ZS |
— | ||
|
28
|
28
83560-GY2-880ZA
Set,l side*type1*
|
83560-GY2-880ZA |
— | ||
|
28
|
28
83560-GY2-880ZB
Set,l side*type2*
|
83560-GY2-880ZB |
— | ||
|
29
|
29
87640-GY1-650ZA
Set,side c*type1*
|
87640-GY1-650ZA |
— | ||
|
29
|
29
87640-GY1-650ZB
Set,side c*type2*
|
87640-GY1-650ZB |
— | ||
|
30
|
30
90111-147-000 Bolt, flange, 6mm |
90111-147-000 |
from US $3.18 |
||
|
31
|
31
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
32
|
32
90215-GM0-000 Nut, cap (6mm) |
90215-GM0-000 |
US $1.94 |
||
| replacement | |||||
|
32
|
32
90201-428-900 Nut, cap, 6mm |
90201-428-900 |
from US $3.26 |
||
|
33
|
33
90305-GK8-000 Nut, clip (6mm) |
90305-GK8-000 |
from US $2.03 |
||
|
34
|
34
80111-099-000
Collar,distance
|
80111-099-000 |
— | ||
|
35
|
35
90380-GS7-000 Screw (6x14) |
90380-GS7-000 |
from US $2.39 |
||
|
36
|
36
90381-GS7-000 Screw,special 6x1 |
90381-GS7-000 |
US $3.01 |
||
|
37
|
37
90683-GR1-003 Clip, body cover |
90683-GR1-003 |
from US $1.46 |
||
|
38
|
38
93891-050-160-7 Screw-washer5X16 |
93891-050-160-7 |
from US $0.22 |
||
|
39
|
39
93903-34310 ScrewTAPPING, 4X12 |
93903-34310 |
from US $0.38 |
||
|
40
|
40
94001-060-000-S
Nut
|
94001-060-000-S |
— | ||
| replacement | |||||
|
40
|
40
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
41
|
41
94101-06000 WasherPLAIN, 6MM |
94101-06000 |
from US $0.37 |
||
| replacement | |||||
|
41
|
41
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
42
|
42
9420116180 Pin, cotter (1.6x18) |
9420116180 |
from US $0.37 |
||
| replacement | |||||
|
42
|
42
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
43
|
43
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
