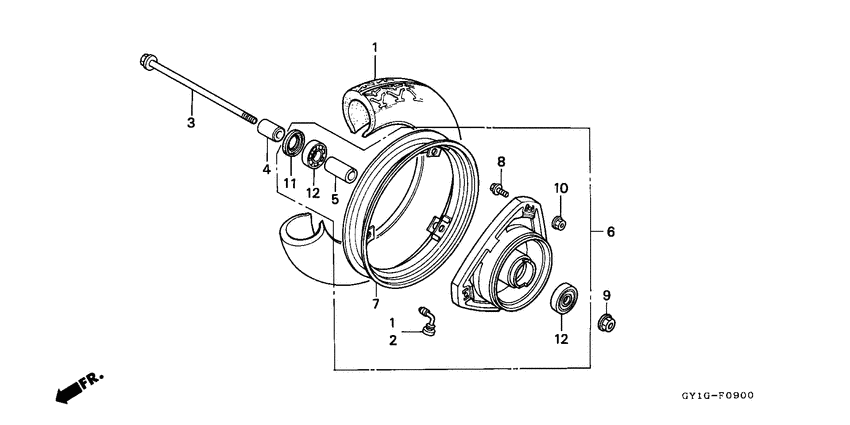

Front wheel Diagram Honda SA50
- Year
- 1993
- Model code
- SA50P
- Sales region
- Germany
- Frame
- AF291101489 - AF291106826
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42710-GY2-902
Tire assy,(france
|
42710-GY2-902 |
— | ||
|
2
|
2
42753-KJ9-004 Valve, rim |
42753-KJ9-004 |
from US $13.62 |
||
| replacement | |||||
|
2
|
2
42753-KJ9-003 Valve, rim |
42753-KJ9-003 |
from US $7.49 |
||
|
3
|
3
44301-GG2-000 Axle,fr.wheel |
44301-GG2-000 |
from US $11.69 |
||
|
4
|
4
44311-GM9-000
Collar,rr.wheel
|
44311-GM9-000 |
— | ||
|
5
|
5
44620-GC8-000 Collar, fr |
44620-GC8-000 |
from US $4.23 |
||
|
6
|
6
44610-GY2-305ZA
Hub set,fr*nh138*
|
44610-GY2-305ZA |
— | ||
|
7
|
7
44701-GY2-901ZB
Rim,wheel *nh138*
|
44701-GY2-901ZB |
— | ||
|
8
|
8
90112-413-000 Bolt, ubs, 8x33 |
90112-413-000 |
from US $4.59 |
||
|
9
|
9
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
10
|
10
90309-KF0-003 Nut, flange, 8mm |
90309-KF0-003 |
from US $3.18 |
||
| replacement | |||||
|
10
|
10
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
11
|
11
90754-GC8-005 Dust seal (20x32x5) |
90754-GC8-005 |
from US $4.29 |
||
|
11
|
11
90754-GC8-003 Dust seal (20x32x5) |
90754-GC8-003 |
from US $4.79 |
||
| replacement | |||||
|
11
|
11
90754-GC8-005 Dust seal (20x32x5) |
90754-GC8-005 |
from US $4.29 |
||
|
12
|
12
90912-GC8-003 Bearing (6201u) |
90912-GC8-003 |
from US $9.18 |
||
|
12
|
12
90912-GC8-004 Bearing (6201u) |
90912-GC8-004 |
from US $10.36 |
||
| replacement | |||||
|
12
|
12
90912-GC8-003 Bearing (6201u) |
90912-GC8-003 |
from US $9.18 |
||
|
12
|
12
90912-GC8-005 B/brg,rad,n/com. |
90912-GC8-005 |
from US $9.18 |
||
