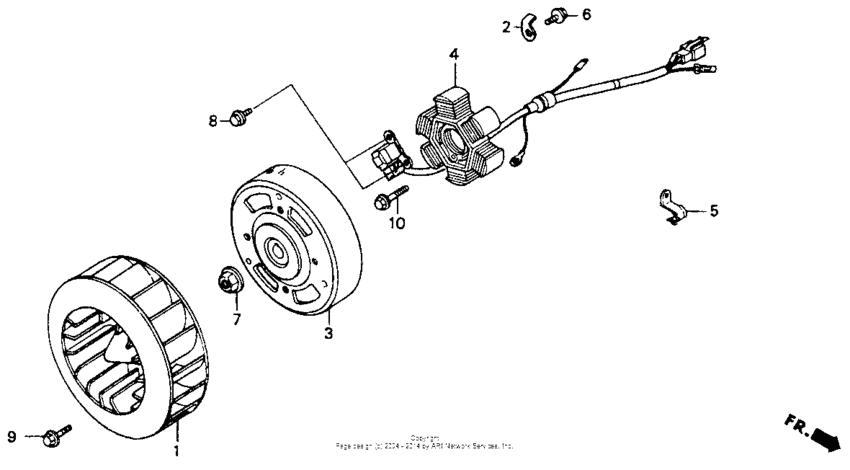

Alternator 94 Diagram Honda SA50
- Year
- 1994
- Model code
- SA50P A
- Sales region
- USA
- Frame
- 3H1AF160*RD000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19510-GZ0-000 Fan comp.,cooling |
19510-GZ0-000 |
US $18.90 |
||
|
2
|
2
30907-GZ5-010 Clamp |
30907-GZ5-010 |
US $2.46 |
||
|
3
|
3
31110-GZ5-008
Flywheel
|
31110-GZ5-008 |
— | ||
|
4
|
4
31120-GS7-951
Stator
|
31120-GS7-951 |
— | ||
|
5
|
5
35210-MA6-000 Clamp, switch cord |
35210-MA6-000 |
from US $3.26 |
||
|
6
|
6
90013-883-000 Bolt, flange, 6x12 (ct200) |
90013-883-000 |
from US $1.63 |
||
|
7
|
7
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
8
|
8
90001-GBL-003 Bolt, flange (6x12)Use from Engine SN 2010025 |
90001-GBL-003 |
US $1.92 |
||
|
8
|
8
96001-060-120-0 BoltFLANGE, 6X12 Use up to Engine SN 2010024 |
96001-060-120-0 |
from US $0.59 |
||
|
9
|
9
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
10
|
10
96001-0601807 Bolt, flange (6x18) |
96001-0601807 |
from US $0.59 |
