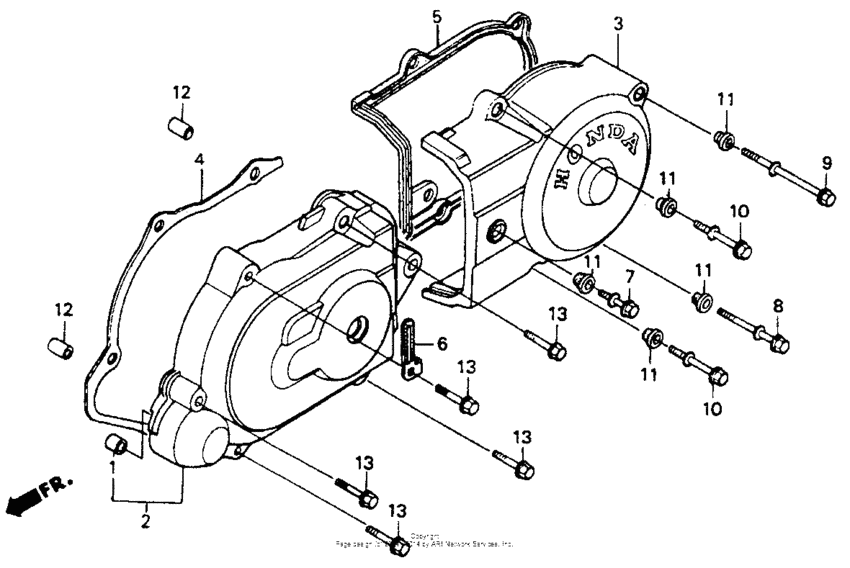

Left side cover 94 Diagram Honda SA50
- Year
- 1994
- Model code
- SA50P A
- Sales region
- USA
- Frame
- 3H1AF160*RD000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11205-GAH-003 Bush (8x12x8) |
11205-GAH-003 |
from US $6.66 |
||
|
2
|
2
11340-GAH-720 Cover, l. side |
11340-GAH-720 |
US $161.93 |
||
|
3
|
3
11351-GR1-000 Cover, l. rr. side |
11351-GR1-000 |
US $112.88 |
||
|
4
|
4
11395-GAH-A00 Gasket, l. fr. |
11395-GAH-A00 |
from US $9.92 |
||
|
5
|
5
11396-GR1-020 Gasket,l side rea |
11396-GR1-020 |
from US $10.80 |
||
|
5
|
5
11396-GW0-010 Gasket, cover |
11396-GW0-010 |
from US $10.80 |
||
| replacement | |||||
|
5
|
5
11396-GR1-020 Gasket,l side rea |
11396-GR1-020 |
from US $10.80 |
||
|
6
|
6
32906-GR1-000
Clip, bystarter wire
|
32906-GR1-000 |
— | ||
|
7
|
7
90007-GJ8-000
Bolt,special,6x28
|
90007-GJ8-000 |
— | ||
|
8
|
8
90007-GR1-000
Bolt,special,6x57
|
90007-GR1-000 |
— | ||
|
9
|
9
90008-GR1-000 Bolt special 6x94 |
90008-GR1-000 |
US $7.38 |
||
|
10
|
10
90009-GR1-000
Bolt special 6x37
|
90009-GR1-000 |
— | ||
|
11
|
11
90543-GR1-000 Mount rubber |
90543-GR1-000 |
from US $3.63 |
||
|
12
|
12
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
13
|
13
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
