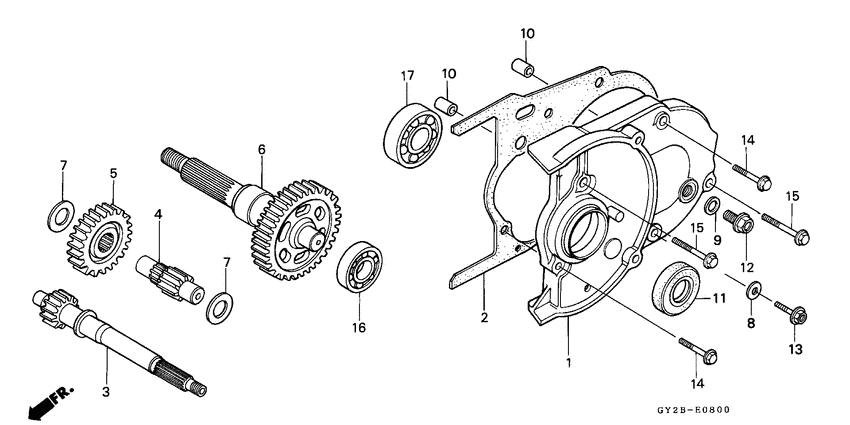

Transmission Diagram Honda SA75
- Year
- 1991
- Model code
- SA75M
- Sales region
- Spain
- Frame
- YC1DF02100001 - YC1DF02199999
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21301-GC7-840
Cover,mission
|
21301-GC7-840 |
— | ||
|
2
|
2
21395-GC8-000
Gskt,mission cov.
|
21395-GC8-000 |
— | ||
| replacement | |||||
|
2
|
2
21395-GC8-010
Gasket, trans cvr
|
21395-GC8-010 |
— | ||
|
3
|
3
23411-GC7-010
Shaft,drive
|
23411-GC7-010 |
— | ||
|
4
|
4
23421-GC2-000
Shaft,counter
|
23421-GC2-000 |
— | ||
|
5
|
5
23422-GA7-000
Gear,counter
|
23422-GA7-000 |
— | ||
|
6
|
6
23430-GC7-000 Gear comp.,final |
23430-GC7-000 |
US $87.43 |
||
|
7
|
7
90454-350-000 Washer (14mm) |
90454-350-000 |
from US $4.29 |
||
|
8
|
8
90461-357-000 Washer, sealing, 12mm |
90461-357-000 |
from US $0.32 |
||
| replacement | |||||
|
8
|
8
90463-KRM-840 Washer (6.2mm) |
90463-KRM-840 |
from US $1.84 |
||
|
9
|
9
90481-001-020 Washer (10.2mm) |
90481-001-020 |
from US $3.11 |
||
|
10
|
10
90703-HC4-000 Dowel pin, 10x14 |
90703-HC4-000 |
from US $1.68 |
||
| replacement | |||||
|
10
|
10
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
11
|
11
91204-GN2-005 Oil seal 17x30x5 (nok) |
91204-GN2-005 |
from US $5.77 |
||
|
12
|
12
90035-KZ1-000
Check bolt
|
90035-KZ1-000 |
— | ||
|
13
|
13
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
14
|
14
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
15
|
15
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
16
|
16
91006-GT8-601
Bearing,radial ba
|
91006-GT8-601 |
— | ||
|
17
|
17
91007-GT8-601
Bearing,radial ba
|
91007-GT8-601 |
— | ||
