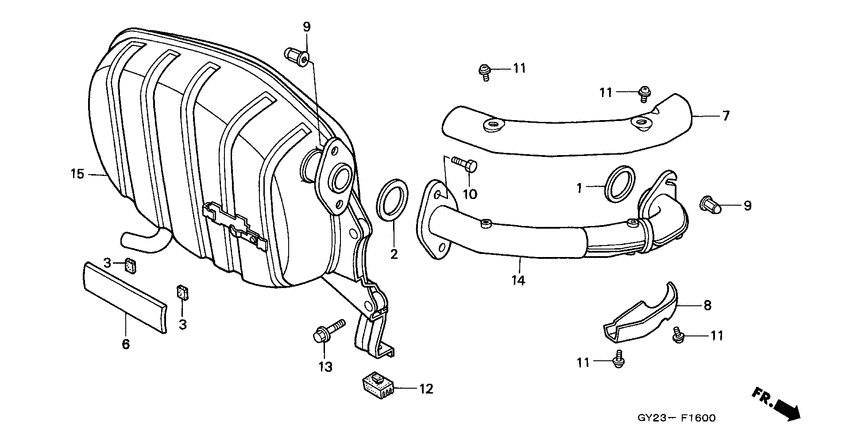

Exhaust muffler Diagram Honda SA75
- Year
- 1993
- Model code
- SA75P
- Sales region
- Spain
- Frame
- ZDCDF02900F300001 - ZDCDF02900F309999
- Engine Capacity
- 75
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-GE2-920 Gasket,ex.pipe |
18291-GE2-920 |
from US $6.36 |
||
|
2
|
2
18291-183-000
Gasket,ex.pipe
|
18291-183-000 |
— | ||
|
3
|
3
18293-GS9-000 Rubber, r. protector |
18293-GS9-000 |
US $2.01 |
||
| replacement | |||||
|
3
|
3
18293-MN0-000 Rubber, protector |
18293-MN0-000 |
from US $3.11 |
||
|
6
|
6
18315-GS9-670
Protector, muffler
|
18315-GS9-670 |
— | ||
|
7
|
7
18325-GY2-900
Protector,ex.pipe
|
18325-GY2-900 |
— | ||
|
8
|
8
18326-GC8-710
Protr b ex pipe
|
18326-GC8-710 |
— | ||
|
9
|
9
90304-438-000 Nut, cap, 6mm |
90304-438-000 |
from US $4.29 |
||
|
10
|
10
92101-06026-0A Bolt,hex.,6x26 |
92101-06026-0A |
US $0.52 |
||
|
11
|
11
93891-060-080-7 Screw-washer,6x8 |
93891-060-080-7 |
US $0.52 |
||
|
12
|
12
95011-64000 Rubber d,stand |
95011-64000 |
from US $1.33 |
||
|
13
|
13
95701-0802507 Bolt, flange, 8x25 |
95701-0802507 |
from US $0.74 |
||
|
14
|
14
18302-GY2-901
Pipe comp.,ex.
|
18302-GY2-901 |
— | ||
|
15
|
15
18305-GY2-910
Muffler comp
|
18305-GY2-910 |
— | ||
