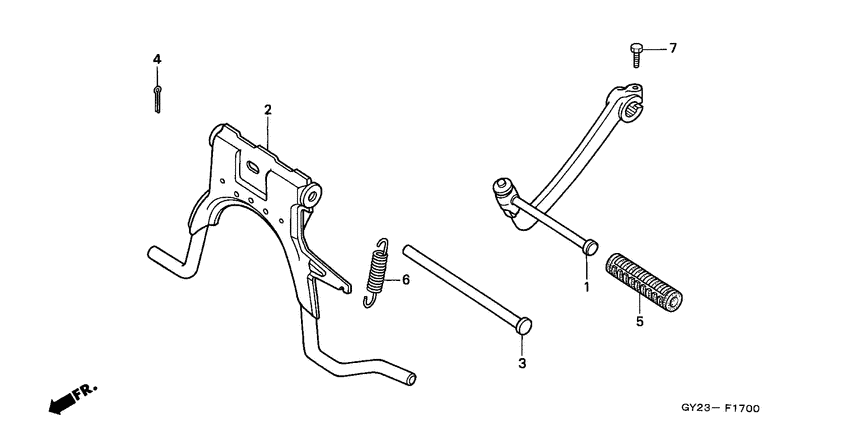

Stand Diagram Honda SA75
- Year
- 1993
- Model code
- SA75P
- Sales region
- Spain
- Frame
- ZDCDF02900F300001 - ZDCDF02900F309999
- Engine Capacity
- 75
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28300-GC8-010 Arm,kick starter |
28300-GC8-010 |
from US $53.79 |
||
|
2
|
2
50500-GY2-900
Stand comp.,main
|
50500-GY2-900 |
— | ||
|
3
|
3
50503-GY1-900
Shaft,main stand
|
50503-GY1-900 |
— | ||
|
4
|
4
94201-25200 PinSPLIT, 2.5X20 |
94201-25200 |
from US $0.37 |
||
| replacement | |||||
|
4
|
4
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
5
|
5
9501151000 Rubber, kick starter |
9501151000 |
from US $1.04 |
||
|
6
|
6
9501471402 Spring d, main stand |
9501471402 |
from US $1.55 |
||
|
7
|
7
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
