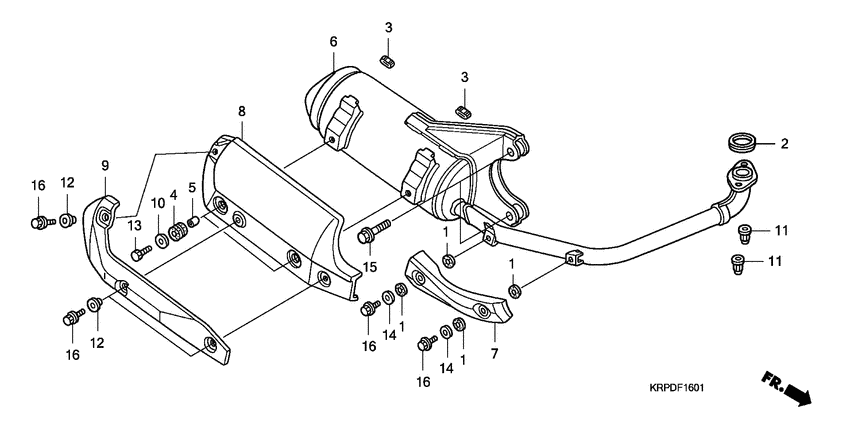

Exhaust muffler (SCV100F9-U) Diagram Honda SCV100 Lead
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Australia
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18292-GW3-980
Packing,protector
|
18292-GW3-980 |
— | ||
|
2
|
2
18292-GY1-610 Gasket,exh pipe |
18292-GY1-610 |
from US $6.36 |
||
|
3
|
3
18293-KRP-980
Rubber,pkg.protr.
|
18293-KRP-980 |
— | ||
|
4
|
4
18294-KRP-980
Rubber,protr.
|
18294-KRP-980 |
— | ||
|
5
|
5
18295-KRP-980
Collar m5,mount
|
18295-KRP-980 |
— | ||
|
6
|
6
18300-KRP-980
Muffler comp,exh.
|
18300-KRP-980 |
— | ||
|
7
|
7
18316-KRP-980
Protr,exh.pipe
|
18316-KRP-980 |
— | ||
|
8
|
8
18317-KRP-980
Protr.a,muff.
|
18317-KRP-980 |
— | ||
|
9
|
9
18318-KRP-980
Protr.b,muff.
|
18318-KRP-980 |
— | ||
|
10
|
10
90103-KRP-980
Washer,plain
|
90103-KRP-980 |
— | ||
|
11
|
11
90308-KPL-840 NutCAP, 6MM |
90308-KPL-840 |
US $4.40 |
||
|
12
|
12
90506-KRP-980
Collar,6x3
|
90506-KRP-980 |
— | ||
|
13
|
13
92101-05016-0A Bolt, hex., 5x16 |
92101-05016-0A |
from US $0.37 |
||
|
14
|
14
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
15
|
15
95801-100-400-7 Bolt, flange (10x40) |
95801-100-400-7 |
US $2.57 |
||
|
16
|
16
96001-060-120-7 BoltFLANGE, 6X12 |
96001-060-120-7 |
from US $0.59 |
