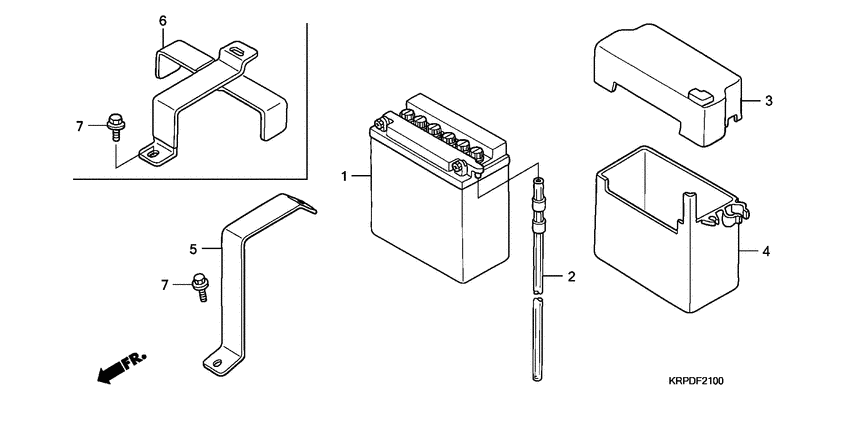

Battery Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-KRP-901
Battery(12mx5l-b)
|
31500-KRP-901 |
— | ||
|
1
|
1
31500-KRP-902
Battery
|
31500-KRP-902 |
— | ||
|
2
|
2
31502-KRP-900
Tube
|
31502-KRP-900 |
— | ||
|
3
|
3
50325-KPL-900
Box upper
|
50325-KPL-900 |
— | ||
|
4
|
4
50326-KPL-900
Box lower
|
50326-KPL-900 |
— | ||
|
5
|
5
50338-KRP-900
Band
|
50338-KRP-900 |
— | ||
|
7
|
7
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
