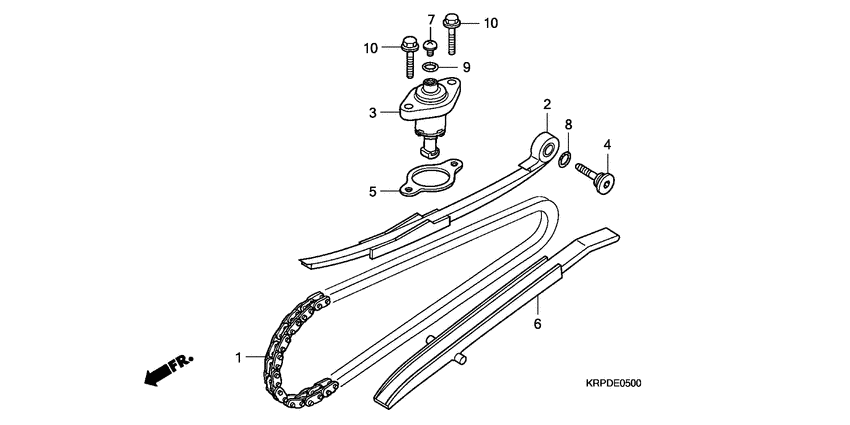

Cam chain/tensioner Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14401-KPL-900 Chain,cam |
14401-KPL-900 |
US $21.70 |
||
|
2
|
2
14510-KPL-900
Tensioner comp,ca
|
14510-KPL-900 |
— | ||
|
3
|
3
14520-KPL-840
Lifter assy
|
14520-KPL-840 |
— | ||
|
4
|
4
14531-GCC-000 Pivot,cam chain t |
14531-GCC-000 |
from US $3.85 |
||
|
5
|
5
14560-KCW-880 Gasket,tensioner |
14560-KCW-880 |
US $5.10 |
||
|
6
|
6
14611-KTP-900
Guide
|
14611-KTP-900 |
— | ||
|
7
|
7
90005-KPL-900
Screw,pan 6x6
|
90005-KPL-900 |
— | ||
|
8
|
8
91301-HM5-630 O ring,15.2x1.5 |
91301-HM5-630 |
from US $2.29 |
||
| replacement | |||||
|
8
|
8
91301-GR0-004 O-ring (15.2x1.5) |
91301-GR0-004 |
from US $2.15 |
||
|
9
|
9
91306-105-690 O-ring1.5X9.5 |
91306-105-690 |
from US $2.11 |
||
| replacement | |||||
|
9
|
9
91306-MG3-000 O-ring (1.5x9.5) |
91306-MG3-000 |
from US $2.44 |
||
|
10
|
10
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
