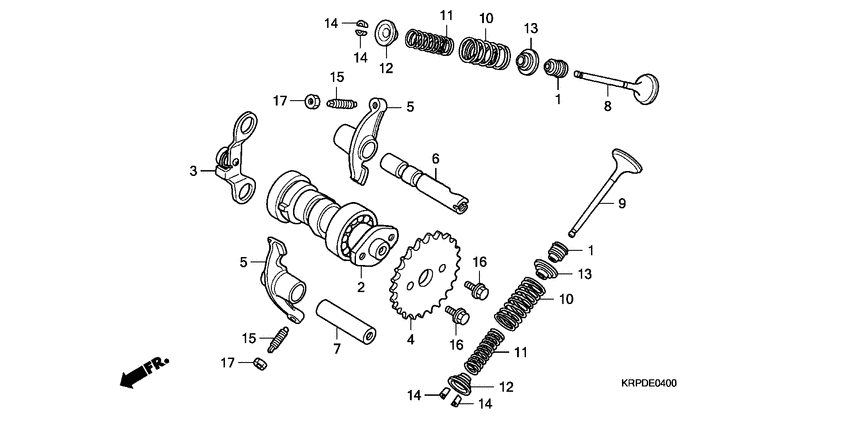

Camshaft/valve Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12209-KPL-901 SealVALVE STEM |
12209-KPL-901 |
US $8.93 |
||
|
2
|
2
14100-KPL-900
Shaft comp,cam
|
14100-KPL-900 |
— | ||
|
3
|
3
14150-GCC-000 Plate comp,stoppe |
14150-GCC-000 |
US $11.84 |
||
|
4
|
4
14321-KPL-900
Sprocket,cam
|
14321-KPL-900 |
— | ||
|
5
|
5
14431-GCC-000 Arm,valve rocker |
14431-GCC-000 |
US $26.25 |
||
|
6
|
6
14451-GCC-000 Shaft,in rocker a |
14451-GCC-000 |
US $8.73 |
||
|
7
|
7
14461-GCC-000 Shaft,ex rocker a |
14461-GCC-000 |
from US $6.07 |
||
|
8
|
8
14711-GCC-000 Valve,inlet |
14711-GCC-000 |
US $25.16 |
||
|
9
|
9
14721-GCC-000 Valve,exhaust |
14721-GCC-000 |
US $41.89 |
||
|
10
|
10
14751-KCW-880
Spg,valve outer
|
14751-KCW-880 |
— | ||
|
11
|
11
14761-KCW-880
Spg,valve outer
|
14761-KCW-880 |
— | ||
|
12
|
12
14771-KPL-900 Retainer,valve sp |
14771-KPL-900 |
US $7.39 |
||
|
13
|
13
14777-KN7-670 Seat, valve spring |
14777-KN7-670 |
from US $5.33 |
||
|
14
|
14
14781-KPL-900 Cotter,valve |
14781-KPL-900 |
from US $0.48 |
||
|
15
|
15
90012-333-000 Screw, tappet adjusting |
90012-333-000 |
from US $3.03 |
||
|
16
|
16
90083-KPL-900
Bolt,knock 5mm
|
90083-KPL-900 |
— | ||
|
17
|
17
90206-KPL-900 Nut,tappet adjg |
90206-KPL-900 |
US $0.17 |
