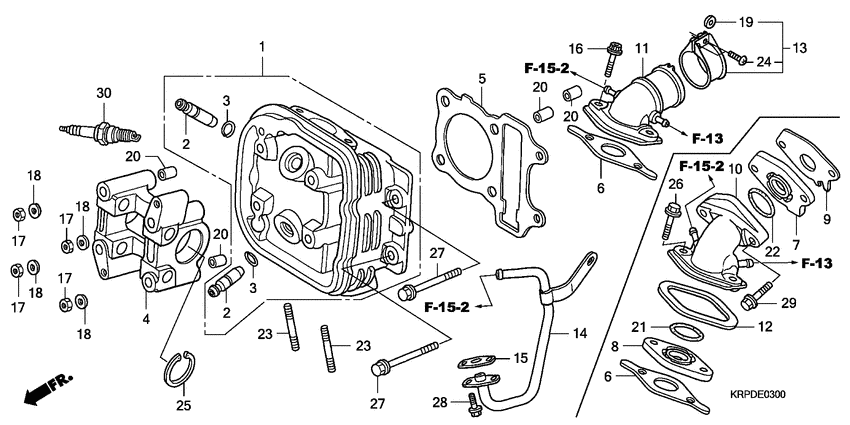

Cylinder head Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-KPL-901
Head comp
|
12200-KPL-901 |
— | ||
|
2
|
2
12204-KPL-P00 GuideVALVE (O.S.) |
12204-KPL-P00 |
US $12.83 |
||
|
3
|
3
12206-KPL-900 Clip, valve guide |
12206-KPL-900 |
from US $3.63 |
||
|
4
|
4
12211-KPL-900
Holder
|
12211-KPL-900 |
— | ||
|
5
|
5
12251-KPL-840
Gasket
|
12251-KPL-840 |
— | ||
|
6
|
6
16201-KRP-980 Gasket,carb insul |
16201-KRP-980 |
US $4.47 |
||
|
7
|
7
16211-KPL-900
Insulator
|
16211-KPL-900 |
— | ||
|
8
|
8
16212-KTP-900
Insulator b
|
16212-KTP-900 |
— | ||
|
9
|
9
16229-KRP-600
Gasket a
|
16229-KRP-600 |
— | ||
|
10
|
10
17110-KPL-840
Pipe comp
|
17110-KPL-840 |
— | ||
|
12
|
12
17113-KPL-900
Rubber
|
17113-KPL-900 |
— | ||
|
14
|
14
18640-KPL-900
Pipe comp,air fee
|
18640-KPL-900 |
— | ||
|
15
|
15
18645-KPL-900
Gasket,air feed p
|
18645-KPL-900 |
— | ||
|
17
|
17
90201-GCC-000 Nut,hex.,7mm |
90201-GCC-000 |
from US $1.33 |
||
|
18
|
18
90401-GCC-000 Washer,7.2x16x2.5 |
90401-GCC-000 |
from US $1.85 |
||
|
20
|
20
90701-KPL-900 Pin,dowel special |
90701-KPL-900 |
US $0.20 |
||
|
21
|
21
91304-GB0-910 O-ring (20.6x1.9) |
91304-GB0-910 |
from US $3.34 |
||
|
22
|
22
91304-GB1-900 O-ring, 25x2.4 |
91304-GB1-900 |
from US $3.89 |
||
| replacement | |||||
|
22
|
22
91307-PE0-010 O-ring25X2.4 |
91307-PE0-010 |
from US $3.03 |
||
|
23
|
23
92900-06016-0B BoltSTUD, 6X16 |
92900-06016-0B |
from US $0.59 |
||
|
25
|
25
94520-32000 CirclipINTERNAL, 32MM |
94520-32000 |
from US $0.86 |
||
|
26
|
26
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
27
|
27
95701-0609000 Bolt, flange, 6x90 |
95701-0609000 |
from US $0.89 |
||
|
28
|
28
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
29
|
29
96001-060-300-0 Bolt, flange (6x30) |
96001-060-300-0 |
from US $0.74 |
||
|
30
|
30
98056-56707
Plug
|
98056-56707 |
— | ||
