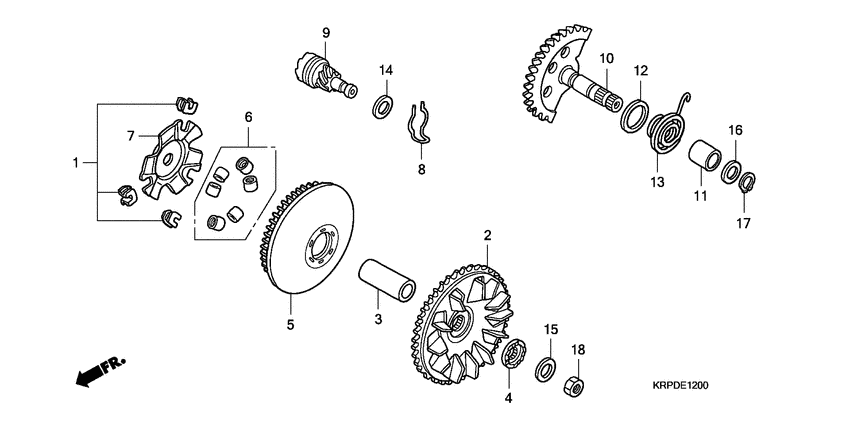

Drive face Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22011-KPL-940
Piece set,slide
|
22011-KPL-940 |
— | ||
|
2
|
2
22102-KPL-901
Face comp
|
22102-KPL-901 |
— | ||
|
3
|
3
22105-KPL-900
Boss
|
22105-KPL-900 |
— | ||
|
4
|
4
22109-KPL-900
Ratchet
|
22109-KPL-900 |
— | ||
|
5
|
5
22110-KPL-900
Face comp
|
22110-KPL-900 |
— | ||
|
6
|
6
22123-KPL-305
Roller set
|
22123-KPL-305 |
— | ||
|
7
|
7
22131-KPL-900
Plate
|
22131-KPL-900 |
— | ||
|
8
|
8
28223-GCC-000 Spg,kick driven g |
28223-GCC-000 |
from US $3.63 |
||
|
9
|
9
28230-KVT-900
Gear comp
|
28230-KVT-900 |
— | ||
|
10
|
10
28250-KVT-900
Spindle comp.
|
28250-KVT-900 |
— | ||
|
11
|
11
28253-KVT-900 BushKICK SPINDLE |
28253-KVT-900 |
US $0.63 |
||
|
12
|
12
28255-KPL-900 Collar,kick boss |
28255-KPL-900 |
US $0.12 |
||
|
13
|
13
28281-GCC-000 Spring,kick retur |
28281-GCC-000 |
US $6.51 |
||
|
14
|
14
90412-329-000 Washer, thrust, 10mm |
90412-329-000 |
from US $0.37 |
||
| replacement | |||||
|
14
|
14
90412-KZL-840 WASHER, THRUST (10MM) |
90412-KZL-840 |
from US $0.70 |
||
|
15
|
15
90426-KBN-900 Washer (12mm) |
90426-KBN-900 |
from US $2.66 |
||
|
16
|
16
90451-KVT-900 WasherKICK SPINDLE |
90451-KVT-900 |
US $0.17 |
||
|
17
|
17
90608-KVT-901 CirclipEXTERNAL, 16MM |
90608-KVT-901 |
US $0.12 |
||
|
18
|
18
94001-122-000-S NutHEX., 12MM |
94001-122-000-S |
from US $0.59 |
||
