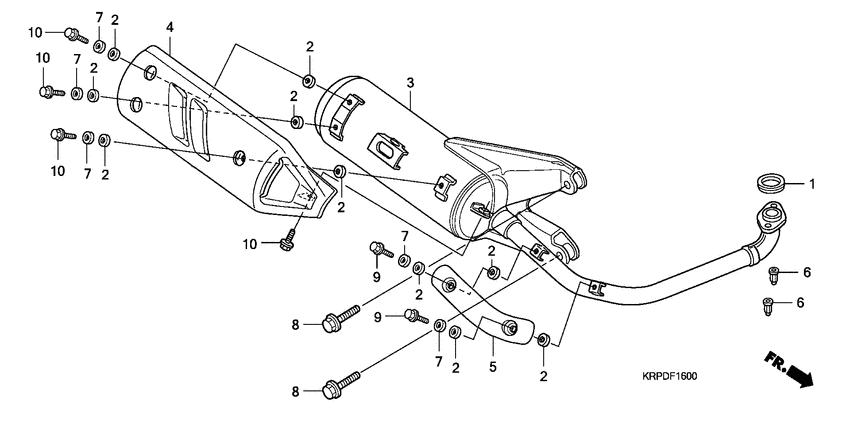

Exhaust muffler (SCV100F9-TU) Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18292-GY1-610 Gasket,exh pipe |
18292-GY1-610 |
from US $6.36 |
||
|
2
|
2
18292-KTP-900 PackingPROTECTOR |
18292-KTP-900 |
US $0.29 |
||
|
3
|
3
18300-KRP-910
Muffler comp.
|
18300-KRP-910 |
— | ||
|
4
|
4
18318-KRP-910
Protector
|
18318-KRP-910 |
— | ||
|
5
|
5
18319-KRP-900
Protector
|
18319-KRP-900 |
— | ||
|
6
|
6
90308-KPL-840 NutCAP, 6MM |
90308-KPL-840 |
US $4.40 |
||
|
7
|
7
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
8
|
8
95801-100-400-7 Bolt, flange (10x40) |
95801-100-400-7 |
US $2.57 |
||
|
9
|
9
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
||
|
10
|
10
96001-060-120-7 BoltFLANGE, 6X12 |
96001-060-120-7 |
from US $0.59 |
