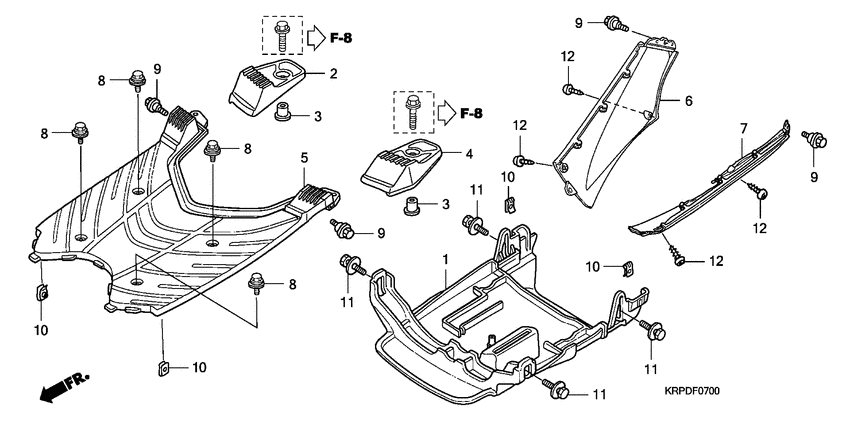

Floor panel Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50621-KRP-980
Cover,under
|
50621-KRP-980 |
— | ||
|
2
|
2
50701-KRP-980
Step comp,r pilli
|
50701-KRP-980 |
— | ||
|
3
|
3
50705-KRP-980
Collar,step set
|
50705-KRP-980 |
— | ||
|
4
|
4
50751-KRP-980
Step comp,l pilli
|
50751-KRP-980 |
— | ||
|
5
|
5
64310-KRP-900ZA
Panel,flo*nh186r*
|
64310-KRP-900ZA |
— | ||
|
6
|
6
64320-KRP-900ZA
Cover r,f*nh411m*
|
64320-KRP-900ZA |
— | ||
|
6
|
6
64320-KRP-900ZB
Cover r,f*pb215c*
|
64320-KRP-900ZB |
— | ||
|
6
|
6
64320-KRP-900ZD
Cover r,f*nha04m*
|
64320-KRP-900ZD |
— | ||
|
6
|
6
64320-KRP-900ZM
Cover
|
64320-KRP-900ZM |
— | ||
|
7
|
7
64330-KRP-900ZA
Cover l,f*nh411m*
|
64330-KRP-900ZA |
— | ||
|
7
|
7
64330-KRP-900ZB
Cover l,f*pb215c*
|
64330-KRP-900ZB |
— | ||
|
7
|
7
64330-KRP-900ZD
Cover l,f*nha04m*
|
64330-KRP-900ZD |
— | ||
|
7
|
7
64330-KRP-900ZM
Cover
|
64330-KRP-900ZM |
— | ||
|
8
|
8
90001-KRB-900
Bolt-washer
|
90001-KRB-900 |
— | ||
|
9
|
9
90111-KPL-900 Bolt,inner cover |
90111-KPL-900 |
US $2.52 |
||
|
10
|
10
90344-KRP-900 NutCLIP, 5MM |
90344-KRP-900 |
US $3.03 |
||
|
11
|
11
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
11
|
11
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
12
|
12
93903-25380 ScrewTAPPING, 5X16 |
93903-25380 |
from US $0.37 |
||
