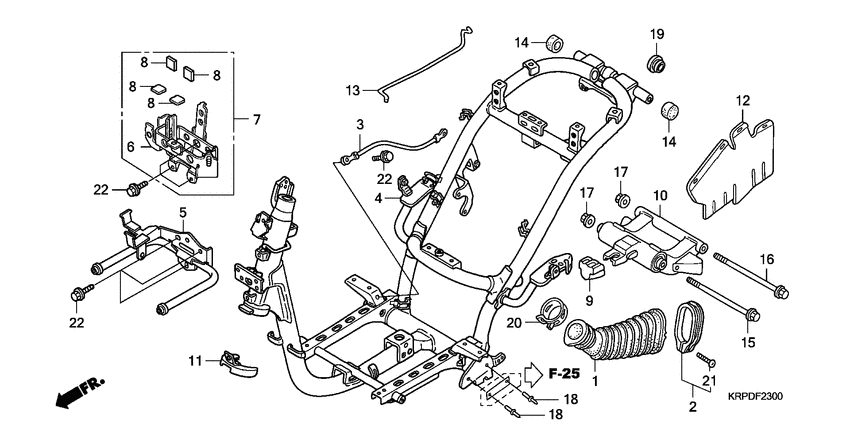

Frame body Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11345-GCC-000 DuctL. COVER |
11345-GCC-000 |
US $7.99 |
||
|
2
|
2
11346-KCW-870 BandL. COVER DUCT |
11346-KCW-870 |
from US $0.88 |
||
|
3
|
3
32603-KRP-880
Cable,eng-frm ear
|
32603-KRP-880 |
— | ||
|
4
|
4
50100-KRP-600
Body comp
|
50100-KRP-600 |
— | ||
|
5
|
5
50310-KRP-901
Stay
|
50310-KRP-901 |
— | ||
|
6
|
6
50330-KRP-902
Tray comp
|
50330-KRP-902 |
— | ||
|
9
|
9
50352-GW0-730 Rubber, link stopper |
50352-GW0-730 |
from US $4.74 |
||
|
10
|
10
50355-KPL-900
Link sub assy,eng
|
50355-KPL-900 |
— | ||
|
11
|
11
53123-KRP-900
Protector,hndl st
|
53123-KRP-900 |
— | ||
|
12
|
12
80102-KPL-900
Plate,frame body
|
80102-KPL-900 |
— | ||
|
13
|
13
81256-KPL-901
Rod,body opener
|
81256-KPL-901 |
— | ||
|
14
|
14
83561-KPL-840 CushionBODY COVER |
83561-KPL-840 |
US $0.41 |
||
|
15
|
15
90105-KJ9-000 Bolt, flg (10x210) |
90105-KJ9-000 |
from US $7.25 |
||
|
16
|
16
90106-GCC-000 Bolt,frange,10x23 |
90106-GCC-000 |
from US $7.55 |
||
|
17
|
17
90304-KCS-920 Nut,u,10mm |
90304-KCS-920 |
US $4 |
||
| replacement | |||||
|
17
|
17
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
18
|
18
90841-001-000 Screw, rivet (1.5x5) |
90841-001-000 |
from US $1.92 |
||
|
19
|
19
90862-GCC-000
Plug,frame end
|
90862-GCC-000 |
— | ||
|
20
|
20
91405-KPL-900 Clamp d29,tube |
91405-KPL-900 |
US $0.65 |
||
|
21
|
21
93500-040250G Screw, pan, 4x25 |
93500-040250G |
from US $0.37 |
||
|
22
|
22
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
