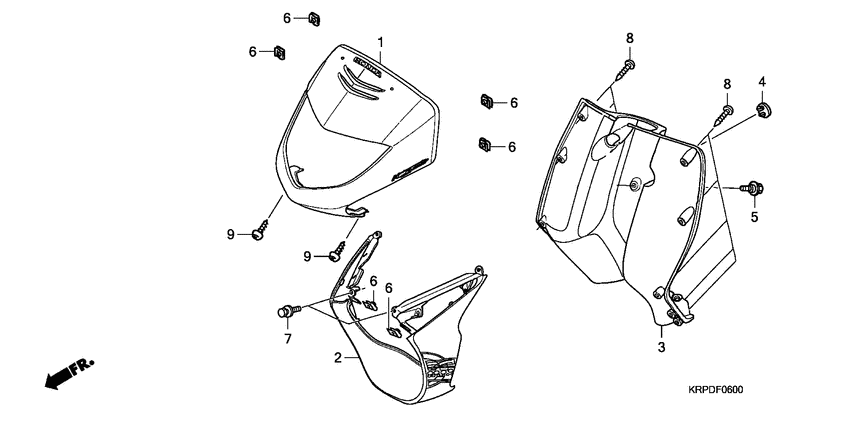

Front cover Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64200-KRP-S10ZA
Cover set
|
64200-KRP-S10ZA |
— | ||
|
1
|
1
64200-KRP-S10ZB
Cover set
|
64200-KRP-S10ZB |
— | ||
|
1
|
1
64200-KRP-S10ZC
Cover set
|
64200-KRP-S10ZC |
— | ||
|
1
|
1
64200-KRP-S10ZD
Cover set
|
64200-KRP-S10ZD |
— | ||
|
2
|
2
64315-KRP-S10ZA
Cover set
|
64315-KRP-S10ZA |
— | ||
|
2
|
2
64315-KRP-S10ZB
Cover set
|
64315-KRP-S10ZB |
— | ||
|
2
|
2
64315-KRP-S10ZC
Cover set
|
64315-KRP-S10ZC |
— | ||
|
2
|
2
64315-KRP-S10ZD
Cover set
|
64315-KRP-S10ZD |
— | ||
|
3
|
3
81131-KRP-900ZA
Cover
|
81131-KRP-900ZA |
— | ||
|
5
|
5
90111-KPL-900 Bolt,inner cover |
90111-KPL-900 |
US $2.52 |
||
|
6
|
6
90344-KRP-900 NutCLIP, 5MM |
90344-KRP-900 |
US $3.03 |
||
|
7
|
7
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
7
|
7
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
8
|
8
93903-25380 ScrewTAPPING, 5X16 |
93903-25380 |
from US $0.37 |
||
|
9
|
9
93903-35220 ScrewTAPPING, 5X12 |
93903-35220 |
from US $0.37 |
||
