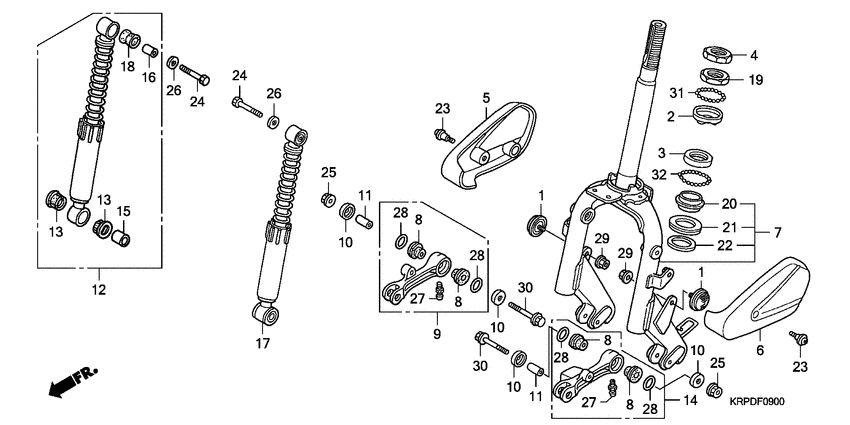

Front fork Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
50301-KEM-900 Race,up strg ball |
50301-KEM-900 |
US $7.10 |
||
|
3
|
3
50302-268-010 Race, steering ball |
50302-268-010 |
from US $11.64 |
||
|
4
|
4
50306-KPL-900
Nut,strg stem loc
|
50306-KPL-900 |
— | ||
|
5
|
5
51103-KPL-900
Cover,r pivot arm
|
51103-KPL-900 |
— | ||
|
6
|
6
51104-KPL-900
Cover,l pivot arm
|
51104-KPL-900 |
— | ||
|
7
|
7
51110-KRP-910
Fork sub assy.
|
51110-KRP-910 |
— | ||
|
8
|
8
51314-KPL-900
Bush,pivot arm
|
51314-KPL-900 |
— | ||
|
9
|
9
51315-KPL-900
Pivot arm set,r
|
51315-KPL-900 |
— | ||
|
10
|
10
51316-KPL-900
Cap,fr fork dist(
|
51316-KPL-900 |
— | ||
|
11
|
11
51334-KPL-900 Collar,arm pivot |
51334-KPL-900 |
US $1.28 |
||
|
12
|
12
51400-KPL-905
Cushion assy
|
51400-KPL-905 |
— | ||
|
12
|
12
51400-KRP-982
Cushion assy
|
51400-KRP-982 |
— | ||
|
13
|
13
51413-GC8-003 Bush, fr. fork |
51413-GC8-003 |
from US $6.81 |
||
|
13
|
13
51413-KPL-902 BushFR. CUSHION UNDER (GABRIEL) |
51413-KPL-902 |
from US $0.85 |
||
|
14
|
14
51415-KPL-900
Pivot arm set,l
|
51415-KPL-900 |
— | ||
|
15
|
15
51486-GC8-003 Collar, rubber bush |
51486-GC8-003 |
from US $2.96 |
||
|
15
|
15
51486-KPL-903 CollarRUBBER BUSH (GABRIEL) |
51486-KPL-903 |
from US $0.41 |
||
|
16
|
16
51486-KRP-981 CollarCUSHION RUBBER BUSH (SHOWA) |
51486-KRP-981 |
US $0.22 |
||
|
16
|
16
52486-KPL-903 CollarRUBBER BUSH (GABRIEL) |
52486-KPL-903 |
US $0.46 |
||
|
17
|
17
51500-KPL-905
Cushion assy
|
51500-KPL-905 |
— | ||
|
17
|
17
51500-KRP-982
Cushion assy
|
51500-KRP-982 |
— | ||
|
18
|
18
52489-KPL-902 BushRUBBER (GABRIEL) |
52489-KPL-902 |
US $0.17 |
||
|
18
|
18
52489-331-003 Rubber a, joint |
52489-331-003 |
from US $2.37 |
||
|
19
|
19
53211-KEM-900 Race,strg top con |
53211-KEM-900 |
US $7.24 |
||
|
20
|
20
53212-250-010 Race, steering cone |
53212-250-010 |
from US $11.84 |
||
|
21
|
21
53214-250-000 Dust seal |
53214-250-000 |
US $3.18 |
||
| replacements | |||||
|
21
|
21
53124-250-000 Dust-seal |
53124-250-000 |
from US $3.77 |
||
|
21
|
21
53214-K0T-J00 DUST SEAL |
53214-K0T-J00 |
from US $4.79 |
||
|
22
|
22
53215-KPL-900
Washer,steering h
|
53215-KPL-900 |
— | ||
|
23
|
23
90102-KPL-900
Screw,fork cover
|
90102-KPL-900 |
— | ||
|
24
|
24
90121-KPL-900 Bolt,hex 8x32 |
90121-KPL-900 |
US $0.65 |
||
|
25
|
25
90309-KPL-900
Nut,flg spl 8mm
|
90309-KPL-900 |
— | ||
|
26
|
26
90443-KPL-900 Washer,special 8m |
90443-KPL-900 |
US $0.05 |
||
|
27
|
27
90901-KPL-900
Nipple,grease a-m
|
90901-KPL-900 |
— | ||
|
28
|
28
91351-KPL-900
O ring,22.1x1.9
|
91351-KPL-900 |
— | ||
|
30
|
30
95801-080-550-8 BoltFLANGE, 8X55 |
95801-080-550-8 |
US $0.81 |
||
|
31
|
31
9621105000 Ball, steel, #5 (5/32) |
9621105000 |
from US $0.15 |
||
|
32
|
32
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
