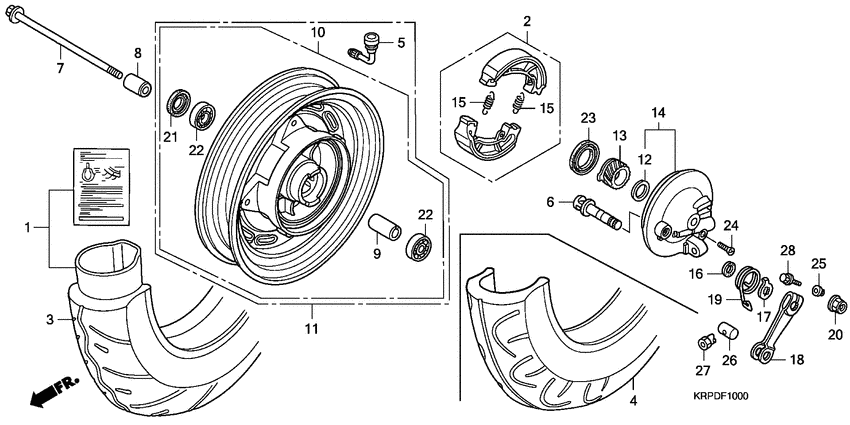

Front wheel Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06427-KPL-840
Tube set
|
06427-KPL-840 |
— | ||
|
2
|
2
06430-KTC-900
Shoe set
|
06430-KTC-900 |
— | ||
|
3
|
3
42711-KRP-901
Tire
|
42711-KRP-901 |
— | ||
|
6
|
6
43141-KPL-900
Cam,rear brake
|
43141-KPL-900 |
— | ||
|
7
|
7
44301-KPL-900
Axle,fr wheel
|
44301-KPL-900 |
— | ||
|
8
|
8
44311-KPL-900
Collar,fr wheel s
|
44311-KPL-900 |
— | ||
|
9
|
9
44620-KPL-900 Collar fr wheel d |
44620-KPL-900 |
US $1.33 |
||
|
10
|
10
44650-KRP-S00
Wheel sub assy.
|
44650-KRP-S00 |
— | ||
|
12
|
12
44809-KPL-900 Washer,spdmt gear |
44809-KPL-900 |
US $0.15 |
||
|
13
|
13
44811-KPL-900 Gear,spdmt |
44811-KPL-900 |
US $1.04 |
||
|
14
|
14
45010-KRP-S10
Panel sub comp.
|
45010-KRP-S10 |
— | ||
|
15
|
15
45133-KPL-900
Boot,pin
|
45133-KPL-900 |
— | ||
|
16
|
16
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
17
|
17
45145-KPL-900 Indicator,front b |
45145-KPL-900 |
US $0.09 |
||
|
18
|
18
45410-KRP-980
Arm,fr brake
|
45410-KRP-980 |
— | ||
|
19
|
19
45435-KPL-900 Spg.brk arm retur |
45435-KPL-900 |
US $0.36 |
||
|
20
|
20
90306-KPL-900
Nut,flg spl 12mm
|
90306-KPL-900 |
— | ||
|
21
|
21
90754-KPL-900
Seal,dust,20x32x5
|
90754-KPL-900 |
— | ||
|
22
|
22
90912-KPL-900
Bearing,ball radi
|
90912-KPL-900 |
— | ||
|
23
|
23
91253-KPL-900 Seal,dust,41x60x7 |
91253-KPL-900 |
US $0.88 |
||
|
24
|
24
93700-050180A Screw, oval (5x18) |
93700-050180A |
from US $0.37 |
||
|
25
|
25
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
26
|
26
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
27
|
27
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
28
|
28
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
