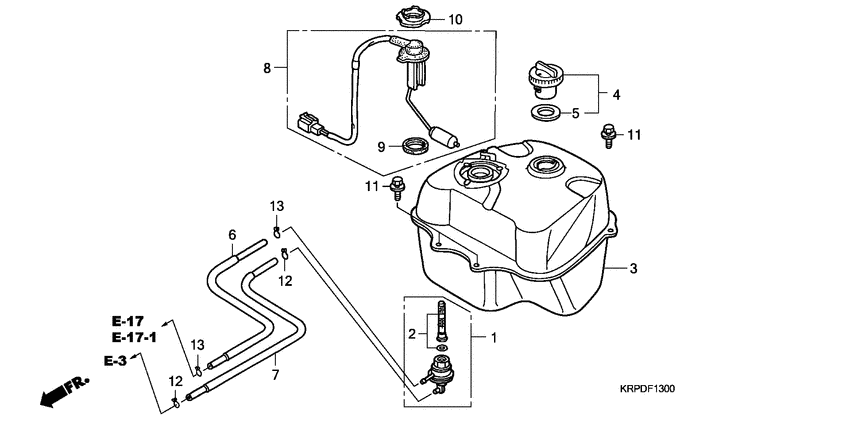

Fuel tank Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-KRP-981 Cock assy.FUEL |
16950-KRP-981 |
from US $11.02 |
||
|
2
|
2
16952-KRP-980 Set,fuel strainer |
16952-KRP-980 |
US $0.77 |
||
|
3
|
3
17500-KPL-841
Tank comp.
|
17500-KPL-841 |
— | ||
|
4
|
4
17620-KRP-980
Cap comp,fuel fil
|
17620-KRP-980 |
— | ||
|
5
|
5
17632-383-831
Gasket
|
17632-383-831 |
— | ||
| replacement | |||||
|
5
|
5
17632-383-832 GASKET |
17632-383-832 |
from US $5.33 |
||
|
6
|
6
17683-KPL-900
Tube comp.fuel
|
17683-KPL-900 |
— | ||
|
7
|
7
17684-KPL-840
Tube comp
|
17684-KPL-840 |
— | ||
|
8
|
8
37080-KPL-840
Fuel unit set
|
37080-KPL-840 |
— | ||
|
9
|
9
37801-GA7-700 Packing, base |
37801-GA7-700 |
from US $4.07 |
||
|
10
|
10
37802-GA7-700 Retainer, fuel unit |
37802-GA7-700 |
from US $5.03 |
||
|
11
|
11
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
11
|
11
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
12
|
12
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
13
|
13
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
