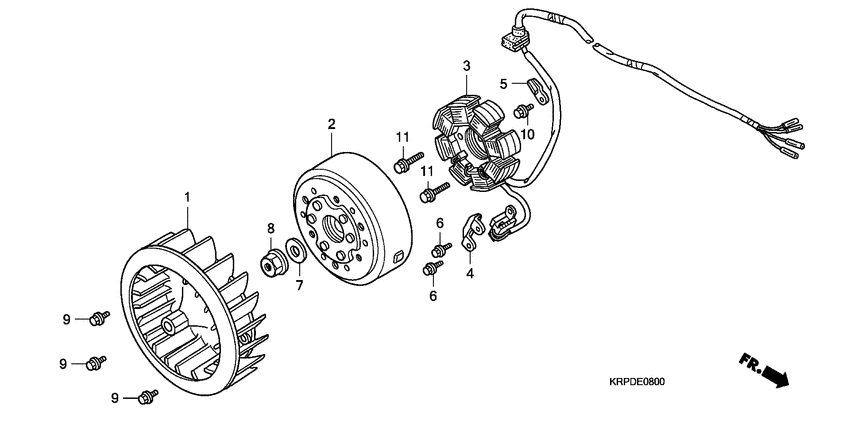

Generator Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19510-KPL-900
Fan comp,cooling
|
19510-KPL-900 |
— | ||
|
2
|
2
31110-KPL-841
Flywheel comp.
|
31110-KPL-841 |
— | ||
|
3
|
3
31120-KRP-901
Stator Comp
|
31120-KRP-901 |
— | ||
|
4
|
4
32907-KPL-900
Clip,acg cord
|
32907-KPL-900 |
— | ||
|
5
|
5
32976-107-010 Clamp, wire harness |
32976-107-010 |
from US $2.79 |
||
|
6
|
6
90083-GCC-000 Bolt,knock 5mm |
90083-GCC-000 |
US $2.70 |
||
|
7
|
7
90410-GCC-000 Washer,10mm |
90410-GCC-000 |
from US $2.66 |
||
|
8
|
8
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
9
|
9
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
10
|
10
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
11
|
11
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
