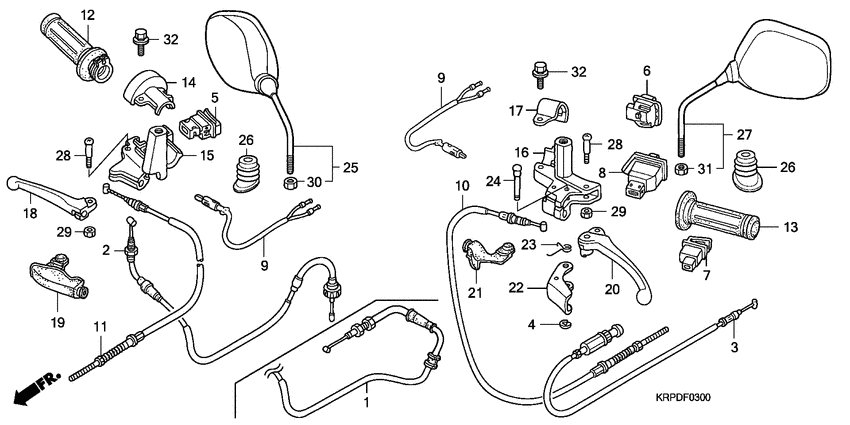

Handle lever/switch/cable Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
17920-KPL-315
Cable set
|
17920-KPL-315 |
— | ||
|
3
|
3
17950-KPL-900
Cable comp
|
17950-KPL-900 |
— | ||
|
4
|
4
30158-GW3-980 Ring,e type (3mm) |
30158-GW3-980 |
from US $1.18 |
||
|
5
|
5
35160-KPL-842
Switch unit
|
35160-KPL-842 |
— | ||
|
5
|
5
35160-KPL-901
Sw unit,start
|
35160-KPL-901 |
— | ||
|
6
|
6
35170-KPL-842
Switch unit
|
35170-KPL-842 |
— | ||
|
6
|
6
35170-KPL-901
Sw unit,dimmer
|
35170-KPL-901 |
— | ||
|
7
|
7
35180-KPL-842
Switch unit
|
35180-KPL-842 |
— | ||
|
7
|
7
35180-KPL-901
Sw unit,horn
|
35180-KPL-901 |
— | ||
|
8
|
8
35200-KPL-842
Switch unit
|
35200-KPL-842 |
— | ||
|
8
|
8
35200-KPL-901
Sw.unit,winker
|
35200-KPL-901 |
— | ||
|
9
|
9
35340-KPL-841
Switch assy
|
35340-KPL-841 |
— | ||
|
10
|
10
43450-KRP-980
Cable comp,rr brk
|
43450-KRP-980 |
— | ||
|
11
|
11
45450-KRP-980
Cable comp,fr brk
|
45450-KRP-980 |
— | ||
|
12
|
12
53146-KRB-901 Grip compTHROTTLE |
53146-KRB-901 |
US $14.50 |
||
|
13
|
13
53166-KPL-901 GripL. HANDLE |
53166-KPL-901 |
US $1.41 |
||
|
14
|
14
53167-KPL-900 Housing,up throt |
53167-KPL-900 |
US $10.33 |
||
|
15
|
15
53168-KRP-980
Housing,und throt
|
53168-KRP-980 |
— | ||
|
16
|
16
53172-KRP-980 Brkt,handle |
53172-KRP-980 |
US $31.26 |
||
|
17
|
17
53173-KPL-900
Band,handle brkt
|
53173-KPL-900 |
— | ||
|
18
|
18
53175-KRP-980
Lever r,strg hand
|
53175-KRP-980 |
— | ||
|
19
|
19
53176-KRP-980
Cover,r hndl leve
|
53176-KRP-980 |
— | ||
|
20
|
20
53178-KRP-980
Lever l,handle
|
53178-KRP-980 |
— | ||
|
21
|
21
53179-KRP-980
Cover,l hndl leve
|
53179-KRP-980 |
— | ||
|
22
|
22
53181-KRP-980
Lever comp,parkin
|
53181-KRP-980 |
— | ||
|
23
|
23
53182-GW3-980 Spring,return,lev |
53182-GW3-980 |
from US $2.89 |
||
|
24
|
24
53183-GW3-980 Pin,pivot parking |
53183-GW3-980 |
from US $4.74 |
||
|
25
|
25
88110-KRP-870
Mirror assy,r bac
|
88110-KRP-870 |
— | ||
|
26
|
26
88113-KRP-901 CapLOCK NUT |
88113-KRP-901 |
US $6.48 |
||
|
27
|
27
88120-KRP-870
Mirror assy,l bac
|
88120-KRP-870 |
— | ||
|
28
|
28
90115-KRP-980 Screw,hndl lever |
90115-KRP-980 |
US $0.22 |
||
|
29
|
29
90304-KPL-900 Nut,hex.5mm |
90304-KPL-900 |
US $0.15 |
||
|
30
|
30
90310-KPL-900 Lock nut,mirror r |
90310-KPL-900 |
US $0.73 |
||
|
31
|
31
90311-KPL-900
Lock nut,mirror l
|
90311-KPL-900 |
— | ||
|
32
|
32
93401-060-200-0 Bolt-washer6X20 |
93401-060-200-0 |
from US $0.52 |
