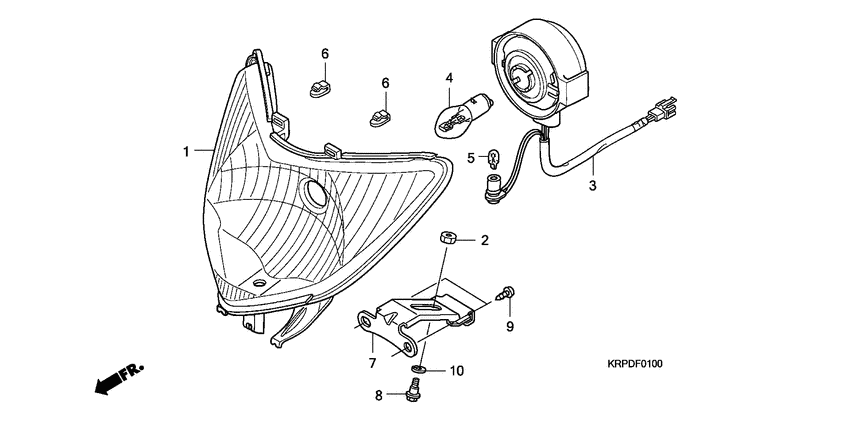

Headlight Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33120-KRP-981
Unit,head light
|
33120-KRP-981 |
— | ||
|
2
|
2
33128-GBL-003 Nut special |
33128-GBL-003 |
from US $2.15 |
||
|
3
|
3
33130-KRP-981
Socket comp.head
|
33130-KRP-981 |
— | ||
|
4
|
4
34901-KRP-980
Bulb,head light
|
34901-KRP-980 |
— | ||
|
5
|
5
34903-KRP-980
Bulb,position lig
|
34903-KRP-980 |
— | ||
|
6
|
6
53209-GAH-000 Clip headlight |
53209-GAH-000 |
from US $1.79 |
||
|
7
|
7
64302-KRP-900
Stay,h/l adjust
|
64302-KRP-900 |
— | ||
|
8
|
8
90101-GBL-710 Bolt,adjust |
90101-GBL-710 |
US $2.15 |
||
|
9
|
9
93903-25380 ScrewTAPPING, 5X16 |
93903-25380 |
from US $0.37 |
||
|
10
|
10
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
