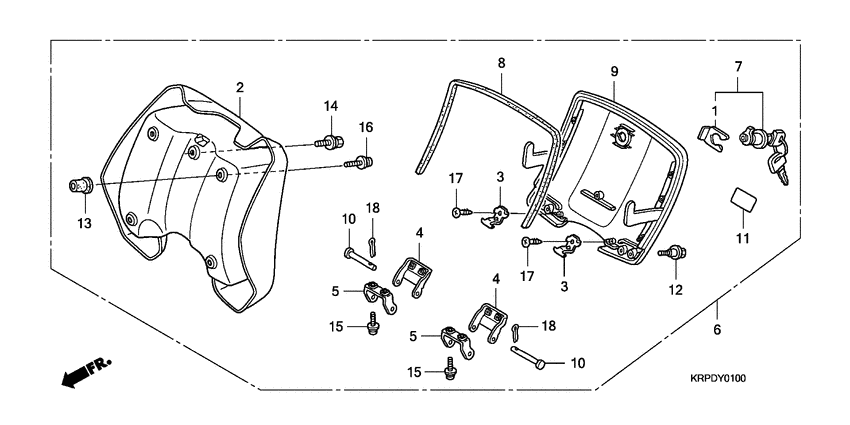

Inner box Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75581-KPL-900
Spring
|
75581-KPL-900 |
— | ||
|
2
|
2
81136-KRP-900
Box
|
81136-KRP-900 |
— | ||
|
3
|
3
81137-KRP-900
Plate
|
81137-KRP-900 |
— | ||
|
4
|
4
81138-KRP-900
Hinge a
|
81138-KRP-900 |
— | ||
|
5
|
5
81139-KRP-900
Hinge b
|
81139-KRP-900 |
— | ||
|
6
|
6
81140-KRP-910
Box set
|
81140-KRP-910 |
— | ||
|
7
|
7
81145-KPL-900
Key set
|
81145-KPL-900 |
— | ||
|
8
|
8
81157-KPL-900
Seal b
|
81157-KPL-900 |
— | ||
|
9
|
9
81161-KPL-840
Lid
|
81161-KPL-840 |
— | ||
|
10
|
10
81167-KPL-900
Pin
|
81167-KPL-900 |
— | ||
|
11
|
11
87505-KRP-901
Label
|
87505-KRP-901 |
— | ||
|
12
|
12
90114-KPL-900
Bolt
|
90114-KPL-900 |
— | ||
|
13
|
13
90156-KPL-900
Nut
|
90156-KPL-900 |
— | ||
|
14
|
14
93404-060-250-7 Bolt-washer6X25 |
93404-060-250-7 |
from US $0.59 |
||
|
15
|
15
93891-050-121-8 Screw-washer5X12 |
93891-050-121-8 |
from US $0.44 |
||
| replacement | |||||
|
15
|
15
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
16
|
16
93894-050-250-8 Screw-washer5X25 |
93894-050-250-8 |
from US $0.52 |
||
|
17
|
17
93903-24380 ScrewTAPPING, 4X12 |
93903-24380 |
from US $0.37 |
||
|
18
|
18
94201-16151 PinSPLIT, 1.6 |
94201-16151 |
from US $0.37 |
||
