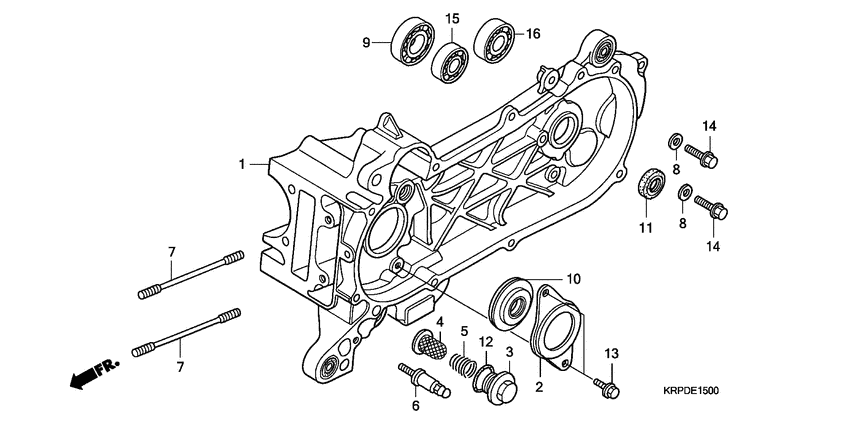

Left crankcase Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-KPL-902
Crankcase comp.
|
11200-KPL-902 |
— | ||
|
2
|
2
11204-GCC-000 PlateOIL SEAL STOPPER |
11204-GCC-000 |
US $4.74 |
||
|
3
|
3
12361-KPL-900 CapTAPPET ADJUSTING HOLE |
12361-KPL-900 |
from US $6.48 |
||
|
4
|
4
15421-107-000 Screen, oil filter |
15421-107-000 |
from US $7.40 |
||
|
5
|
5
15426-KCW-880 Spg,oil filter sc |
15426-KCW-880 |
from US $3.63 |
||
|
6
|
6
90008-KPL-900 BoltMAIN STAND SPRING |
90008-KPL-900 |
US $1.34 |
||
|
7
|
7
90032-KPL-900
Bolt,b stud 7x186
|
90032-KPL-900 |
— | ||
|
8
|
8
90474-333-000 Washer, sealing, 8mm |
90474-333-000 |
from US $2.14 |
||
|
9
|
9
91004-GCC-000 Brg,ball radial 6 |
91004-GCC-000 |
US $10.33 |
||
|
10
|
10
91202-KPL-901
Oil seal 20.8x53x
|
91202-KPL-901 |
— | ||
|
11
|
11
91204-KPL-901
Oil seal,17x30x6
|
91204-KPL-901 |
— | ||
|
12
|
12
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
13
|
13
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
14
|
14
95701-0801200 Bolt, flange, 8x12 |
95701-0801200 |
from US $0.62 |
||
|
15
|
15
96100-6201000 Bearing, radial ball, 6201 |
96100-6201000 |
from US $4.44 |
||
|
16
|
16
96100-6202000 Bearing, radial ball, 6202 |
96100-6202000 |
from US $4.88 |
