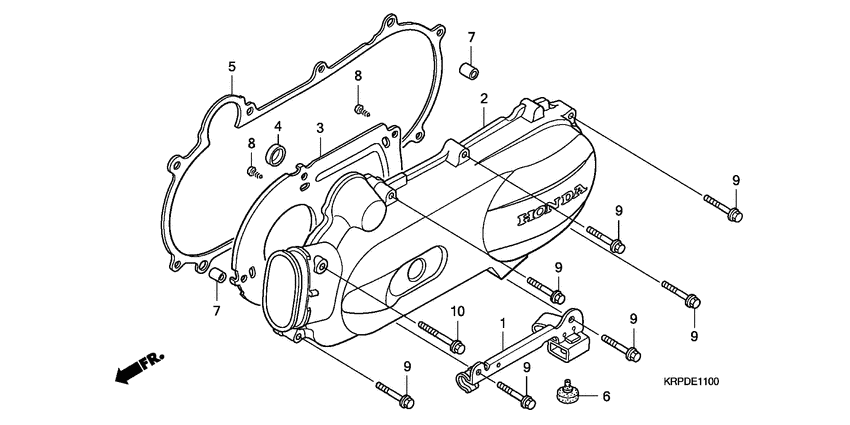

Left Crankcase Cover Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11230-KRP-980
Clamper comp.
|
11230-KRP-980 |
— | ||
|
2
|
2
11341-KRP-S00
Cover
|
11341-KRP-S00 |
— | ||
|
3
|
3
11342-GCC-000 PlateL. COVER |
11342-GCC-000 |
US $15.07 |
||
|
4
|
4
11344-GW3-980 Rubber |
11344-GW3-980 |
from US $1.26 |
||
|
5
|
5
11395-KRP-980 GasketL. COVER |
11395-KRP-980 |
US $19.72 |
||
|
6
|
6
50501-KPL-900 Stopper rubber |
50501-KPL-900 |
US $0.48 |
||
|
7
|
7
90701-KPL-900 Pin,dowel special |
90701-KPL-900 |
US $0.20 |
||
|
8
|
8
93903-34120 ScrewTAPPING, 4X8 |
93903-34120 |
from US $0.37 |
||
|
9
|
9
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
10
|
10
96001-0607500 Bolt, flange (6x75) |
96001-0607500 |
from US $0.72 |
