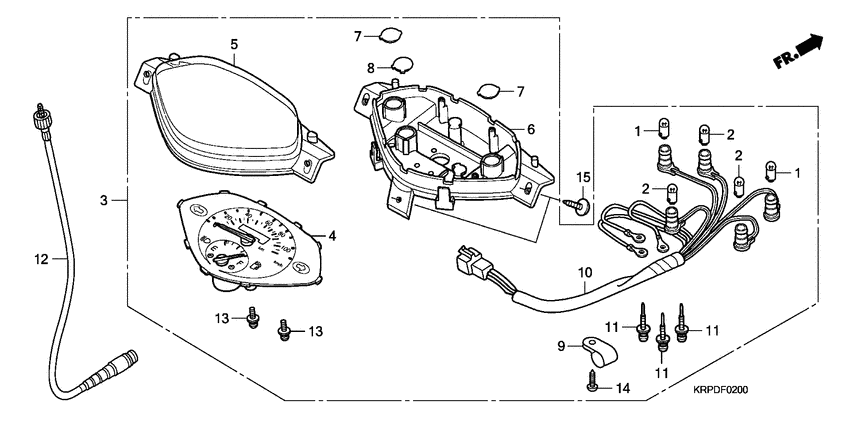

Meter Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34908-KPL-901
Bulb (12v/3.0w)
|
34908-KPL-901 |
— | ||
|
2
|
2
34909-KPL-901
Bulb (12v/1.7w)
|
34909-KPL-901 |
— | ||
|
3
|
3
37200-KRP-981
Speedometer assy
|
37200-KRP-981 |
— | ||
|
4
|
4
37210-KRP-981
Speedo & fuel met
|
37210-KRP-981 |
— | ||
|
5
|
5
37211-KRP-901
Lens
|
37211-KRP-901 |
— | ||
|
6
|
6
37212-KRP-901
Case
|
37212-KRP-901 |
— | ||
|
7
|
7
37213-KRP-901
Lens pilot turn
|
37213-KRP-901 |
— | ||
|
8
|
8
37214-KPL-901
Lens pilot high b
|
37214-KPL-901 |
— | ||
|
9
|
9
37215-MB6-831 Clamp |
37215-MB6-831 |
from US $2.29 |
||
|
10
|
10
37224-KRP-981
Socket comp
|
37224-KRP-981 |
— | ||
|
11
|
11
37305-KPL-901
Spl.screw 3x17
|
37305-KPL-901 |
— | ||
|
12
|
12
44830-KPL-900 Cable comp,spdmt |
44830-KPL-900 |
US $18.18 |
||
|
13
|
13
90035-166-008 Screw-washer |
90035-166-008 |
from US $2.22 |
||
|
14
|
14
93903-24420 ScrewTAPPING, 4X16 |
93903-24420 |
from US $0.37 |
||
|
15
|
15
93903-25380 ScrewTAPPING, 5X16 |
93903-25380 |
from US $0.37 |
