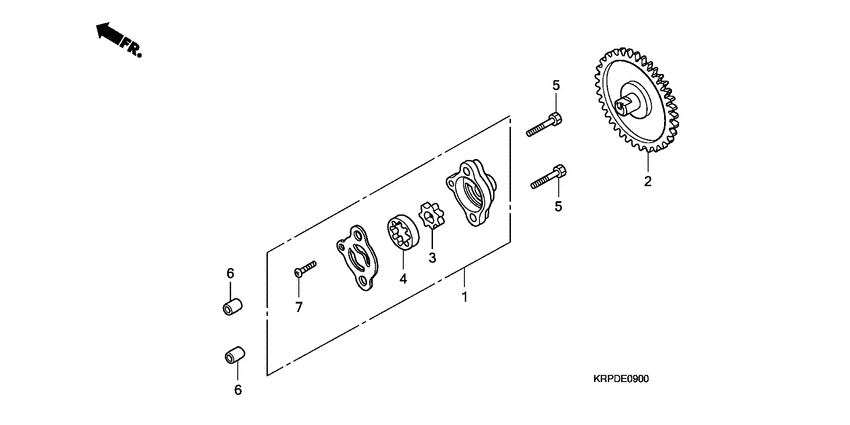

Oil pump Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-KTP-900 Pump assy.OIL |
15100-KTP-900 |
US $3.67 |
||
|
2
|
2
15133-GFC-901 Gear,oil pump dri |
15133-GFC-901 |
US $16.18 |
||
|
3
|
3
15331-436-000 Rotor, oil pump |
15331-436-000 |
US $10.06 |
||
|
4
|
4
15332-436-000 Rotor, oil pump |
15332-436-000 |
US $13.76 |
||
|
5
|
5
90001-KPL-900 Bolt,hex.,6x30 |
90001-KPL-900 |
US $0.20 |
||
|
6
|
6
90701-KPL-900 Pin,dowel special |
90701-KPL-900 |
US $0.20 |
||
|
7
|
7
93901-34120 ScrewTAPPING, 4X8 |
93901-34120 |
from US $0.37 |
