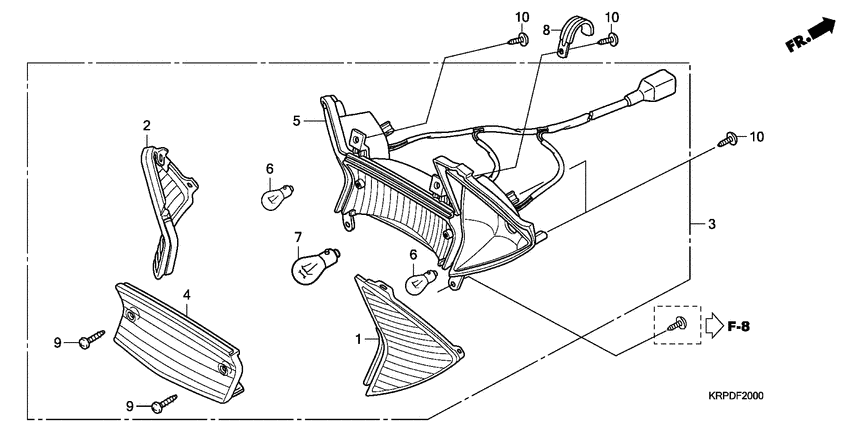

Rear combination light Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33602-KRP-901
Lens,rr winker r
|
33602-KRP-901 |
— | ||
|
2
|
2
33652-KRP-901
Lens,rr winker l
|
33652-KRP-901 |
— | ||
|
3
|
3
33700-KRP-981
Light assy,rr com
|
33700-KRP-981 |
— | ||
|
4
|
4
33701-KRP-981
Lens comp,tail li
|
33701-KRP-981 |
— | ||
|
5
|
5
33704-KRP-981
Base comp,rear
|
33704-KRP-981 |
— | ||
|
6
|
6
34904-KRP-980
Bulb,winker light
|
34904-KRP-980 |
— | ||
|
7
|
7
34906-KRP-980
Bulb,tail light
|
34906-KRP-980 |
— | ||
|
8
|
8
91405-KRP-900
Clip,2x70
|
91405-KRP-900 |
— | ||
|
9
|
9
93901-34380 ScrewTAPPING, 4X12 |
93901-34380 |
from US $0.37 |
||
|
10
|
10
93903-35220 ScrewTAPPING, 5X12 |
93903-35220 |
from US $0.37 |
