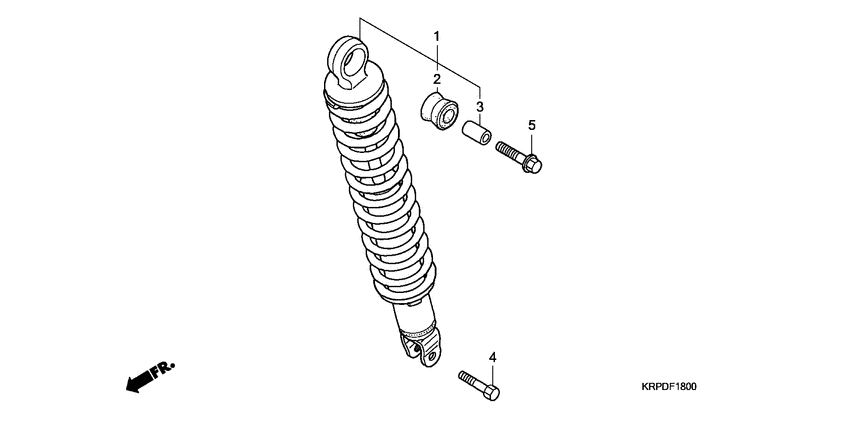

Rear cushion Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-KPL-904
Cushion assy
|
52400-KPL-904 |
— | ||
|
1
|
1
52400-KPL-905
Cushion assy
|
52400-KPL-905 |
— | ||
|
2
|
2
52485-KPL-902
Bush
|
52485-KPL-902 |
— | ||
|
2
|
2
52485-088-901 Bush, rr. |
52485-088-901 |
from US $4.29 |
||
| replacement | |||||
|
2
|
2
52485-KR3-003 Bush, rr. shock |
52485-KR3-003 |
from US $6.36 |
||
|
3
|
3
52486-GA7-003 Collar, rubber bush |
52486-GA7-003 |
from US $2.57 |
||
|
3
|
3
52487-KPL-903
Collar
|
52487-KPL-903 |
— | ||
|
4
|
4
92201-08032-0A Bolt, hex., 8x32 |
92201-08032-0A |
from US $0.62 |
||
|
5
|
5
95801-1003500 Bolt, flange (10x35) |
95801-1003500 |
from US $0.81 |
||
