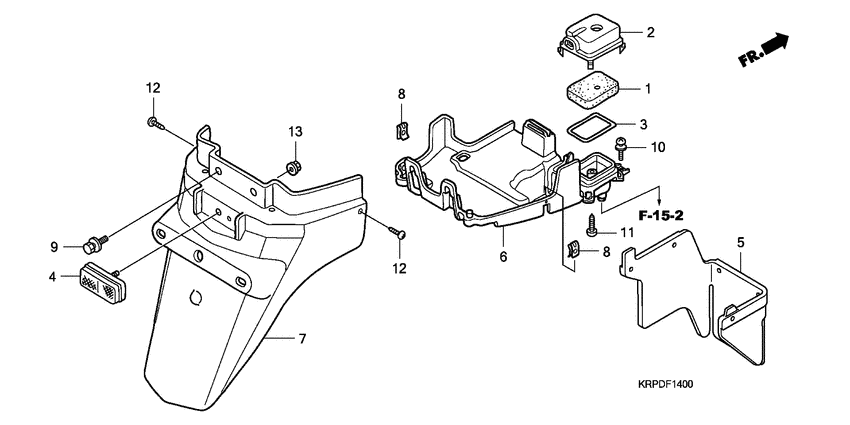

Rear fender Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18805-KPL-900 Element,sub air/c |
18805-KPL-900 |
US $0.92 |
||
|
2
|
2
18807-KPL-900 Cover,sub air/c |
18807-KPL-900 |
US $1.34 |
||
|
3
|
3
18812-KPL-900 Seal,sub air/c |
18812-KPL-900 |
US $0.32 |
||
|
4
|
4
33741-KPL-901 Reflex reflector |
33741-KPL-901 |
US $6.41 |
||
| replacement | |||||
|
4
|
4
33741-KPL-902 REFLECTOR REFLEX |
33741-KPL-902 |
from US $0.85 |
||
|
5
|
5
80104-KRP-900
Plate,rr fender s
|
80104-KRP-900 |
— | ||
|
6
|
6
80105-KRP-900
Fender,rr upper
|
80105-KRP-900 |
— | ||
|
7
|
7
80106-KRP-902
Fender
|
80106-KRP-902 |
— | ||
|
8
|
8
90344-KRP-900 NutCLIP, 5MM |
90344-KRP-900 |
US $3.03 |
||
|
9
|
9
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
10
|
10
93891-0601408 Screw-washer (6x14) |
93891-0601408 |
from US $0.52 |
||
|
11
|
11
93903-25480 ScrewTAPPING, 5X20 |
93903-25480 |
from US $0.37 |
||
|
12
|
12
93903-35220 ScrewTAPPING, 5X12 |
93903-35220 |
from US $0.37 |
||
|
13
|
13
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.29 |
||
