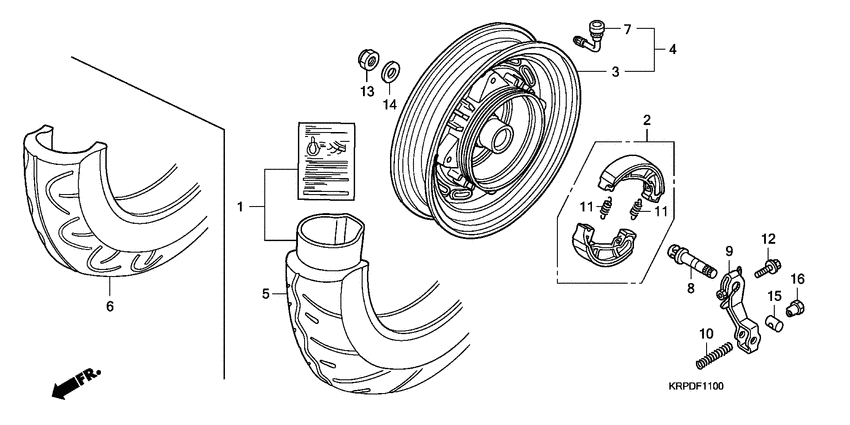

Rear wheel Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06427-KPL-840
Tube set
|
06427-KPL-840 |
— | ||
|
2
|
2
06430-KPL-840
Shoe set
|
06430-KPL-840 |
— | ||
|
3
|
3
42650-KRP-S00
Wheel sub assy.
|
42650-KRP-S00 |
— | ||
|
5
|
5
42711-KRP-901
Tire
|
42711-KRP-901 |
— | ||
|
8
|
8
43141-KPL-900
Cam,rear brake
|
43141-KPL-900 |
— | ||
|
9
|
9
43410-KRP-980
Arm,rear brake
|
43410-KRP-980 |
— | ||
|
10
|
10
43472-KPL-900 Spg,rr brk arm |
43472-KPL-900 |
US $0.12 |
||
|
11
|
11
45133-KPL-900
Boot,pin
|
45133-KPL-900 |
— | ||
|
12
|
12
90112-KPL-900 Bolt,flange,6x30 |
90112-KPL-900 |
US $0.65 |
||
|
13
|
13
90305-KPL-900
Nut,hex spl 16mm
|
90305-KPL-900 |
— | ||
|
14
|
14
90501-KPL-900 Washer,16mm |
90501-KPL-900 |
US $0.48 |
||
|
15
|
15
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
16
|
16
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
