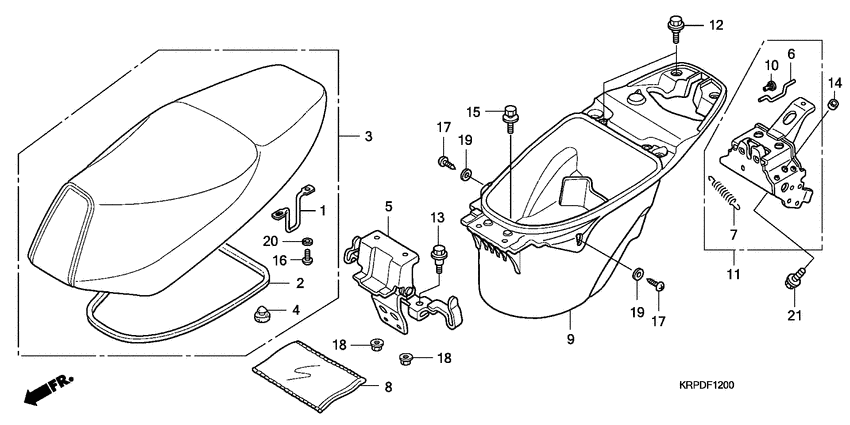

Seat/luggage box Diagram Honda SCV100 Beat
- Year
- 2009
- Model code
- SCV100F9
- Sales region
- Turkey
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77102-KRP-900
Bar,seat lock
|
77102-KRP-900 |
— | ||
|
2
|
2
77115-KRP-900
Rubber,seal
|
77115-KRP-900 |
— | ||
|
3
|
3
77200-KRP-900ZA
Seat comp
|
77200-KRP-900ZA |
— | ||
|
4
|
4
77206-KG8-900 Rubber,seat setti |
77206-KG8-900 |
US $3.63 |
||
|
5
|
5
77210-KRP-900
Hinge assy,seat
|
77210-KRP-900 |
— | ||
|
6
|
6
77234-KRP-900
Rod
|
77234-KRP-900 |
— | ||
|
7
|
7
77236-GBL-000 Spring, seat catch |
77236-GBL-000 |
from US $2.19 |
||
|
8
|
8
77251-KPL-900 Bag,service book |
77251-KPL-900 |
US $0.20 |
||
|
9
|
9
81250-KRP-910
Box
|
81250-KRP-910 |
— | ||
|
10
|
10
83566-KRP-900
Collar
|
83566-KRP-900 |
— | ||
|
11
|
11
83570-KRP-903 Hinge assyBODY COVER |
83570-KRP-903 |
US $135.87 |
||
|
12
|
12
90111-KPL-900 Bolt,inner cover |
90111-KPL-900 |
US $2.52 |
||
|
13
|
13
90112-KRP-900
Bolt,flange 6x18
|
90112-KRP-900 |
— | ||
|
14
|
14
90505-KRP-980
Collar,10mm
|
90505-KRP-980 |
— | ||
|
15
|
15
93404-080-200-7 Bolt-washer8X20 |
93404-080-200-7 |
from US $0.67 |
||
|
16
|
16
93500-040-100-H ScrewPAN, 4X10 |
93500-040-100-H |
from US $0.37 |
||
|
17
|
17
93903-25380 ScrewTAPPING, 5X16 |
93903-25380 |
from US $0.37 |
||
|
18
|
18
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
19
|
19
94103-05700 WasherPLAIN, 5MM |
94103-05700 |
from US $0.37 |
||
|
20
|
20
94111-04800 WasherSPRING, 4MM |
94111-04800 |
from US $0.37 |
||
|
21
|
21
95701-100-200-0 BoltFLANGE, 10X20 |
95701-100-200-0 |
from US $0.74 |
