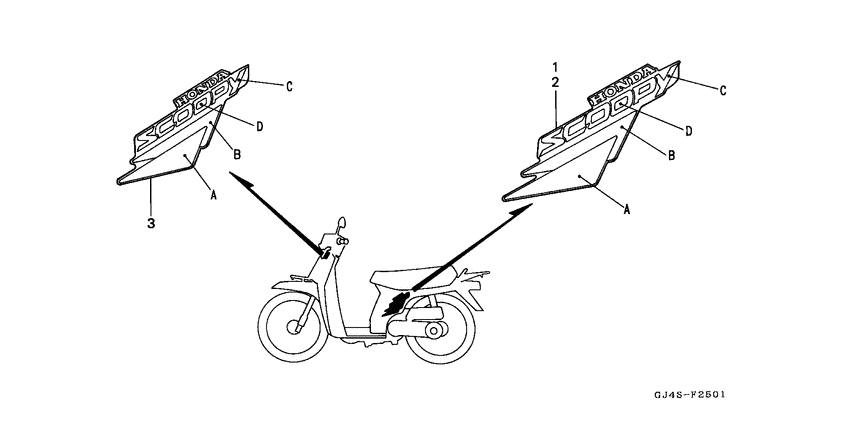

Mark (SH75K) Diagram Honda SH75 Scoopy
- Year
- 1989
- Model code
- SH75K
- Sales region
- Spain
- Engine Capacity
- 75
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83505-GJ3-880ZA
Stripe r cover t1
|
83505-GJ3-880ZA |
— | ||
|
1
|
1
83505-GJ3-880ZB
Stripe r cover t2
|
83505-GJ3-880ZB |
— | ||
|
1
|
1
83505-GJ3-880ZC
Stripe r cover t3
|
83505-GJ3-880ZC |
— | ||
|
2
|
2
83605-GJ3-880ZA
Stripe l cover t1
|
83605-GJ3-880ZA |
— | ||
|
2
|
2
83605-GJ3-880ZB
Stripe l cover t2
|
83605-GJ3-880ZB |
— | ||
|
2
|
2
83605-GJ3-880ZC
Stripe l cover t3
|
83605-GJ3-880ZC |
— | ||
|
3
|
3
87124-GJ3-880ZA
Emblem legshield t1
|
87124-GJ3-880ZA |
— | ||
|
3
|
3
87124-GJ3-880ZB
Emblem legshield t2
|
87124-GJ3-880ZB |
— | ||
|
3
|
3
87124-GJ3-880ZC
Emblem legshield t3
|
87124-GJ3-880ZC |
— |
