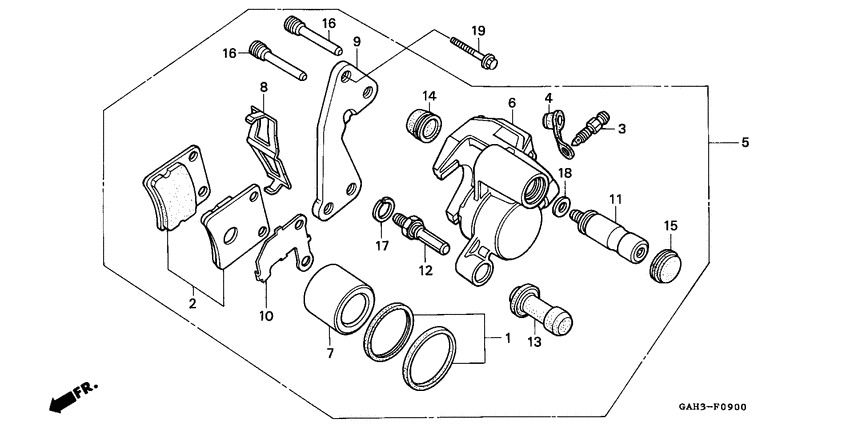

Front brake caliper Diagram Honda SK50
- Year
- 1993
- Model code
- SK50MP
- Sales region
- Portugal
- Frame
- AF285100026 - AF285102250
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06451-166-405 Seal set, piston |
06451-166-405 |
from US $7.70 |
||
|
2
|
2
06455-GZ0-405 Pad setFR. |
06455-GZ0-405 |
US $57.26 |
||
|
3
|
3
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
4
|
4
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
5
|
5
45100-GW0-751ZA Caliper a*yr139m* |
45100-GW0-751ZA |
US $250.62 |
||
|
6
|
6
45101-GW0-751ZA
Caliper c*yr139m*
|
45101-GW0-751ZA |
— | ||
|
7
|
7
45107-166-006 Piston |
45107-166-006 |
from US $23.26 |
||
|
8
|
8
45108-166-006 Spring, pad |
45108-166-006 |
from US $7.55 |
||
|
9
|
9
45110-GW0-751 Bracket,fr. |
45110-GW0-751 |
US $12.83 |
||
|
10
|
10
45114-GZ0-016 Shim,l |
45114-GZ0-016 |
US $4.74 |
||
|
11
|
11
45115-GE3-602 Pin, slide |
45115-GE3-602 |
from US $6.81 |
||
|
12
|
12
45131-GZ0-006 Bolt, pin |
45131-GZ0-006 |
from US $4.29 |
||
|
13
|
13
45132-166-016 Bush, pin |
45132-166-016 |
from US $1.40 |
||
|
14
|
14
45133-166-016 Boot, pin |
45133-166-016 |
from US $2.16 |
||
|
15
|
15
45134-GE3-601 Dust plug |
45134-GE3-601 |
from US $3.26 |
||
|
16
|
16
45215-GC4-602 Pin, hanger |
45215-GC4-602 |
from US $6.22 |
||
|
17
|
17
45216-166-006 Washer, wave |
45216-166-006 |
from US $2.22 |
||
|
18
|
18
45218-166-006 Washer, conical spring |
45218-166-006 |
from US $3.63 |
||
|
19
|
19
90131-GW0-750 Bolt, flange (8x20) |
90131-GW0-750 |
from US $2.74 |
