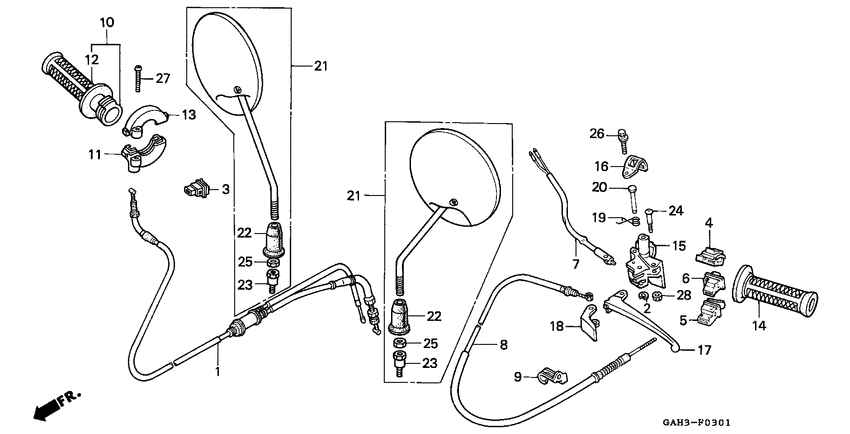

Handle lever/switch/cable (2) Diagram Honda SK50
- Year
- 1993
- Model code
- SK50MP
- Sales region
- Portugal
- Frame
- AF285100026 - AF285102250
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-GAH-000 Cable comp.,throt |
17910-GAH-000 |
US $46.51 |
||
|
2
|
2
30158-700-010 E-clip3MM |
30158-700-010 |
from US $1.14 |
||
|
3
|
3
35160-GS7-013 Sw.unit,start |
35160-GS7-013 |
US $14.55 |
||
|
4
|
4
35170-GS7-003 Switch unit,dimme |
35170-GS7-003 |
US $16.05 |
||
|
5
|
5
35180-GS7-023 Sw.unit,horn |
35180-GS7-023 |
US $13.74 |
||
|
6
|
6
35200-GW2-023 Sw.unit,winker |
35200-GW2-023 |
US $12.14 |
||
|
7
|
7
35340-GS7-003 Switch assy.,fr s |
35340-GS7-003 |
from US $13.19 |
||
|
8
|
8
43450-GAH-000 Cable comp,rr brk |
43450-GAH-000 |
US $24.51 |
||
|
9
|
9
43452-GW0-000 Clamp, brake cable |
43452-GW0-000 |
from US $3.18 |
||
|
10
|
10
53140-GW0-000 Grip comp., throttle |
53140-GW0-000 |
from US $12.58 |
||
|
11
|
11
53167-GAH-700 Housing,und throt |
53167-GAH-700 |
US $11.25 |
||
|
12
|
12
53167-GW0-305 Grip set,r.handle |
53167-GW0-305 |
US $9.32 |
||
|
13
|
13
53168-GAH-700 Housing, upper throttle |
53168-GAH-700 |
from US $11.10 |
||
|
14
|
14
53168-GW0-305 Grip set,l.handle |
53168-GW0-305 |
US $10.11 |
||
|
15
|
15
53172-GW2-000
Bracket,handle
|
53172-GW2-000 |
— | ||
|
16
|
16
53173-GS7-003 Band, handle bracket |
53173-GS7-003 |
from US $4.07 |
||
|
17
|
17
53178-GN2-930 Lever,l.steering |
53178-GN2-930 |
US $14.50 |
||
| replacement | |||||
|
17
|
17
53178-GS7-670 Lever,l.steering |
53178-GS7-670 |
US $10.66 |
||
|
18
|
18
53181-GN2-930
Lever comp.,parki
|
53181-GN2-930 |
— | ||
|
19
|
19
53182-155-010 Spring, lever return |
53182-155-010 |
from US $3.18 |
||
|
20
|
20
53183-155-000 Pin |
53183-155-000 |
from US $5.21 |
||
|
21
|
21
88110-GAH-791 Mirror assy,back |
88110-GAH-791 |
US $22.12 |
||
|
22
|
22
88113-GN2-600
Cap,lock nut
|
88113-GN2-600 |
— | ||
|
23
|
23
88115-GAH-790 Bolt 8x14 adpt |
88115-GAH-790 |
from US $6.07 |
||
|
24
|
24
90115-147-000 Screw (5mm) |
90115-147-000 |
from US $2.44 |
||
|
25
|
25
90201-GC8-650 Nut,hex.,8mm |
90201-GC8-650 |
from US $0.75 |
||
|
26
|
26
93401-060-200-0 Bolt-washer6X20 |
93401-060-200-0 |
from US $0.52 |
||
|
27
|
27
93500-050220A Screw, pan, 5x22 |
93500-050220A |
from US $0.44 |
||
|
28
|
28
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
