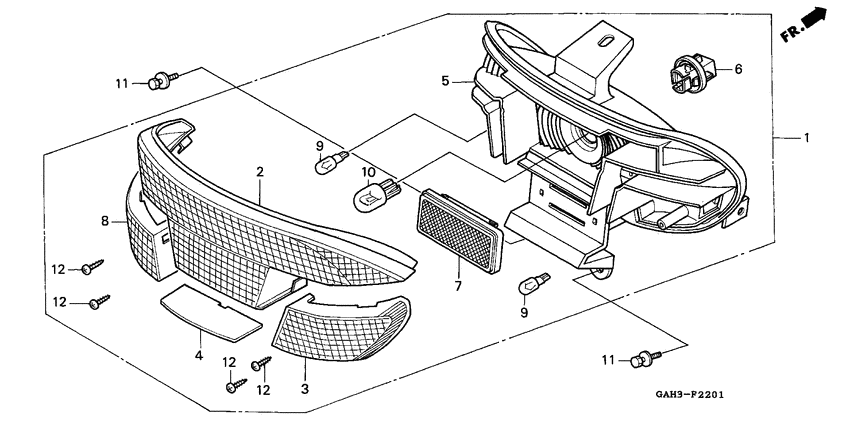

Rear combination light Diagram Honda SK50
- Year
- 1993
- Model code
- SK50MP
- Sales region
- Portugal
- Frame
- AF285100026 - AF285102250
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33700-GAH-701
Light assy.,rr.co
|
33700-GAH-701 |
— | ||
|
2
|
2
33701-GAH-701
Lens,taillight
|
33701-GAH-701 |
— | ||
|
3
|
3
33702-GAH-701
Lens,r.winker
|
33702-GAH-701 |
— | ||
|
4
|
4
33703-GAH-003 Lens,license |
33703-GAH-003 |
US $4.29 |
||
|
5
|
5
33704-GAH-003
Base comp.,rr.com
|
33704-GAH-003 |
— | ||
|
6
|
6
33720-GZ9-003 Socket |
33720-GZ9-003 |
from US $7.22 |
||
|
7
|
7
33741-GAH-003 Reflector,reflex |
33741-GAH-003 |
US $16.46 |
||
|
8
|
8
33752-GAH-701
Lens,l.winker
|
33752-GAH-701 |
— | ||
|
9
|
9
34905-GM9-003 Bulb winker |
34905-GM9-003 |
US $3.18 |
||
|
10
|
10
34906-GAH-003 Bulb,taillight (1 |
34906-GAH-003 |
US $3.55 |
||
|
11
|
11
93404-060-120-7 Bolt-washer6X12 - 5102090 |
93404-060-120-7 |
from US $0.52 |
||
|
11
|
11
93404-0601200 Bolt-washer, 6x125102091 - |
93404-0601200 |
from US $0.52 |
||
|
12
|
12
93901-24420 ScrewTAPPING, 4X16 |
93901-24420 |
from US $0.37 |
