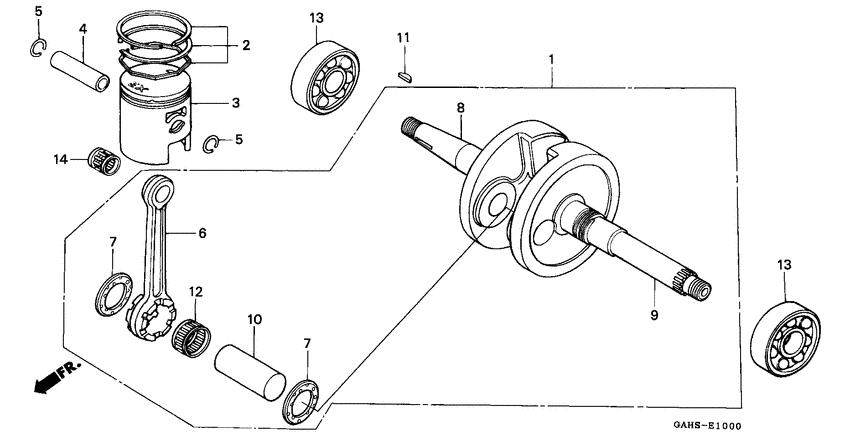

Crankcase/piston Diagram Honda SK50
- Year
- 1993
- Model code
- SK50MP
- Sales region
- Spain
- Frame
- VTMAF27900E000002 - VTMAF27900E006201
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-GAH-720
Superceded
|
13000-GAH-720 |
— | ||
| replacement | |||||
|
1
|
1
13000-GAH-721
Crankshaft
|
13000-GAH-721 |
— | ||
|
2
|
2
13010-GW0-307
Ring set (std)
|
13010-GW0-307 |
— | ||
|
3
|
3
13101-GAH-720 Piston (std) |
13101-GAH-720 |
US $66.79 |
||
| replacement | |||||
|
3
|
3
13101-GAH-505 Piston |
13101-GAH-505 |
from US $44.88 |
||
|
4
|
4
13111-GZ0-000 Pin, piston |
13111-GZ0-000 |
from US $11.99 |
||
|
5
|
5
13115-156-000 Clip (12mm) |
13115-156-000 |
from US $2.25 |
||
|
6
|
6
13201-GAH-300
Rod,connecting
|
13201-GAH-300 |
— | ||
| replacement | |||||
|
6
|
6
13201-GAH-310 Rod, connecting |
13201-GAH-310 |
US $52.63 |
||
|
7
|
7
13202-169-003
Plate,conrod side
|
13202-169-003 |
— | ||
|
8
|
8
13311-GAH-720
Crankshaft,r.
|
13311-GAH-720 |
— | ||
| replacement | |||||
|
8
|
8
13311-GAH-721
Crankshaft, r.
|
13311-GAH-721 |
— | ||
|
9
|
9
13321-GAH-720
Shaft,crank l
|
13321-GAH-720 |
— | ||
| replacement | |||||
|
9
|
9
13321-GAH-721
Crankshaft, l
|
13321-GAH-721 |
— | ||
|
10
|
10
13381-GAH-720
Pin,crank
|
13381-GAH-720 |
— | ||
|
11
|
11
90741-035-000 KEY |
90741-035-000 |
from US $3.77 |
||
|
12
|
12
91001-GAH-008 Brg,con-rod big e |
91001-GAH-008 |
from US $8.88 |
||
|
12
|
12
91002-GAH-008 Brg,con-rod big e |
91002-GAH-008 |
US $8.93 |
||
|
12
|
12
91003-GAH-008 Brg,con-rod big e |
91003-GAH-008 |
US $8.93 |
||
|
12
|
12
91004-GAH-008 Brg,con-rod big e |
91004-GAH-008 |
US $8.93 |
||
|
13
|
13
91005-GW0-003
Brg.,ball radial
|
91005-GW0-003 |
— | ||
| replacement | |||||
|
13
|
13
91005-GW0-023 Brg,ball radial 6 |
91005-GW0-023 |
from US $18.43 |
||
|
13
|
13
91005-GW0-013 Bearing,radial ba |
91005-GW0-013 |
from US $16.73 |
||
| replacement | |||||
|
13
|
13
91005-GW0-023 Brg,ball radial 6 |
91005-GW0-023 |
from US $18.43 |
||
|
14
|
14
91102-GW0-008 Brg.,con-rod s.e. |
91102-GW0-008 |
from US $8.55 |
||
